Prices incl. VAT plus shipping costs
- Item number: E-632
- Manufacturer Part Number: 24638-03
Delivery time to Germany 1-3 business days

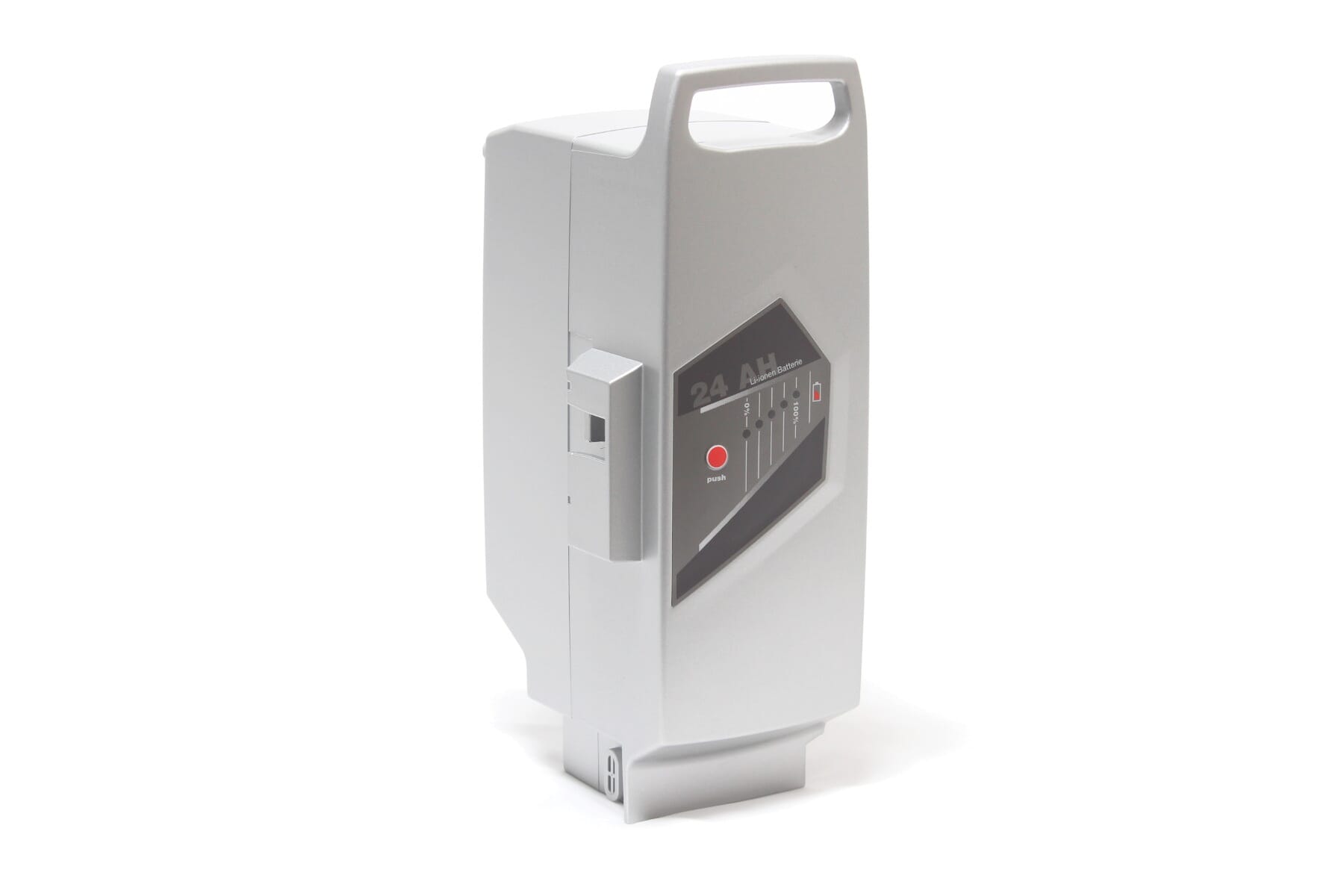

With the BMZ 26 Volt E-Bike battery for Panasonic drives you breathe new life into your e-bike. With 24Ah / 624Wh, the battery has enough energy for extended tours of 150 to 200km. The frame battery is compatible with e-bikes with Panasonic 26V motor - including Kalkhoff, Raleigh and Victoria. Thanks to current lithium-ion manganese technology, the battery can be charged easily without memory effect in any charge state. For this we recommend the matching BMZ fast charger for 26V Panasonic batteries. With it, your 24Ah Panasonic battery from BMZ is fully ready for use again after 5-6 hours at the socket. All this makes the 26 Volt Panasonic battery from BMZ/ DerbyCycle the first choice as a replacement battery to your Panasonic e-bike.
Features of the Panasonic 26V battery 24Ah
- frame battery from BMZ/ DerbyCycle
- suitable for all 26V Panasonic drives
- for e-bikes from Kalkhoff, Victoria & Raleigh
- lush 24Ah/ 624Wh capacity
- Ranges of 150 - 200km possible
- weight: approx. 3,2Kg
Note on the Panasonic battery - 25.2 / 26 Volt 24 Ah - BMZ
If you currently have an original Panasonic standard charger "NKJ044" we recommend the BMZ 26V fast charger for Panasonic. The reason for this is the modified receptacle foot on the Panasonic charger and the not suitably positioned charging contacts. This means that safe charging is only possible to a limited extent. In addition, the total charging time with the original charger is extended to about 14 hours. The dimensions of the 24Ah battery are identical to those of the BMZ Panasonic E-Bike battery 18Ah. If you have any uncertainties or questions about compatibility, please feel free to contact our customer service.
Battery capacity: | 600 Wh - 699 Wh |
Drive system: | Panasonic drive |
Panasonic System: | Panasonic Motor central Premium 26 V |
Battery position: | Seat tube battery / semi-integrated |
Weight: | 24 Ah = 3.2 kg |
Item: | BMZ E-Bike battery - Lithium Ion Manganese for Kalkhoff, Victoria, Raleigh, Rixe |
Scope of delivery: | rechargeable battery |
Manufacturer: | BMZ |
Colour: | silver |
Measurements: | LxWxH = 9cm x 13cm x 28,5 cm (incl. handle) |
Charging cycles: | 1200 charging cycles |
Range: | 24 Ah = approx. 150-200 km |
Model year: | all wheels with 26 Volt Panasonic premium drive until model year 2012 |
