Quick-release battery holder for TQ Range-Extender

The Quick-Release battery holder for TQ Range Extender was specially developed for e-bikes with the TQ HPR50 drive system. Just like the TQ Range Extender itself, the bracket was also designed for e-bikes that have a connection to the TQ HPR50 drive directly on the outside of the frame.

The scope of delivery includes 2 mounting plates - down tube & seat tube mounting. Also supplied are 2 quick-release clamps for the TQ range extender and a bottle cage. The mounting plates and quick-release clamp for the bottle cage basically fit any e-bike due to the standard hole size.

Attention! To mount the base plate on the battery, only use the T15 x M4 x L8 mm screws provided. If other fastening screws are used, there is a risk of fire from the battery.

Features of the Quick-Release battery holder

• Battery holder for TQ Range Extender
• for e-bikes with TQ HPR50 drive system
• Easy to remove and attach thanks to Quick-Release clamps
• Quick mounting on down tube or seat tube
• Use of a bottle cage possible
• Scope of delivery: 2 mounting plates & 2 quick-release clamps

Mounting the TQ Range-Extender with the Quick-Release battery holder

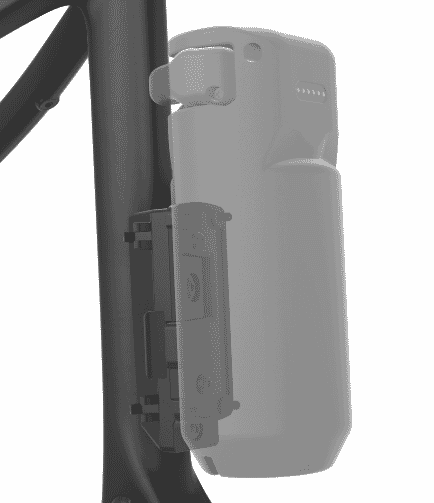

To mount the TQ Range-Extender on your e-bike, you need one of the two supplied mounting plates. The mounting is either on the down tube or on the seat tube. Here you must note where your e-bike has the connection to the TQ HPR50 drive. If the connection is at the top of the top tube, you need the flat mounting plate. If the connection is at the bottom of the seat tube, the slightly rounded mounting plate is used.

To attach the TQ Range Extender to the mounting plate, you need the Quick Release clamp, which is attached to the rear of the Range Extender. Then the quick-release clamp is pushed onto the side of the mounting plate together with the TQ Range Extender. Now the range extender sits firmly and securely on your e-bike.

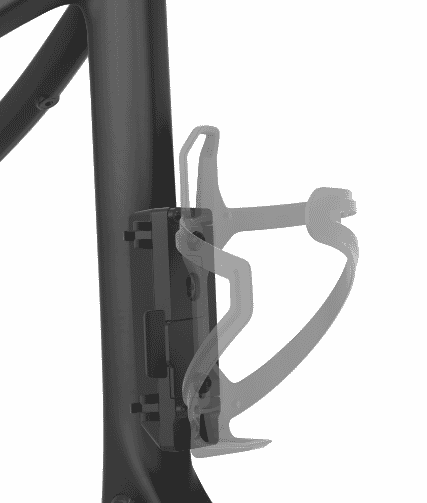

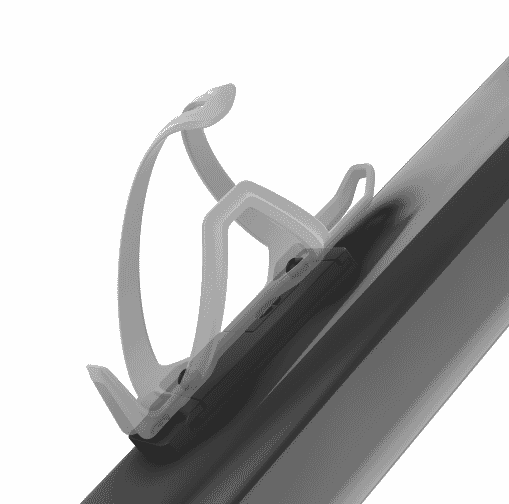

TQ Range-Extender in combination with a bottle cage

Optionally, you can also attach a bottle cage to your e-bike in addition to the TQ Range-Extender, as the set includes the Quick-Release brackets and the Quick-Release clamps for both options. However, you must check whether there is enough space in your e-bike frame to combine both options.

Note: should you have any questions regarding compatibility or availability, do not hesitate to contact our customer service.
