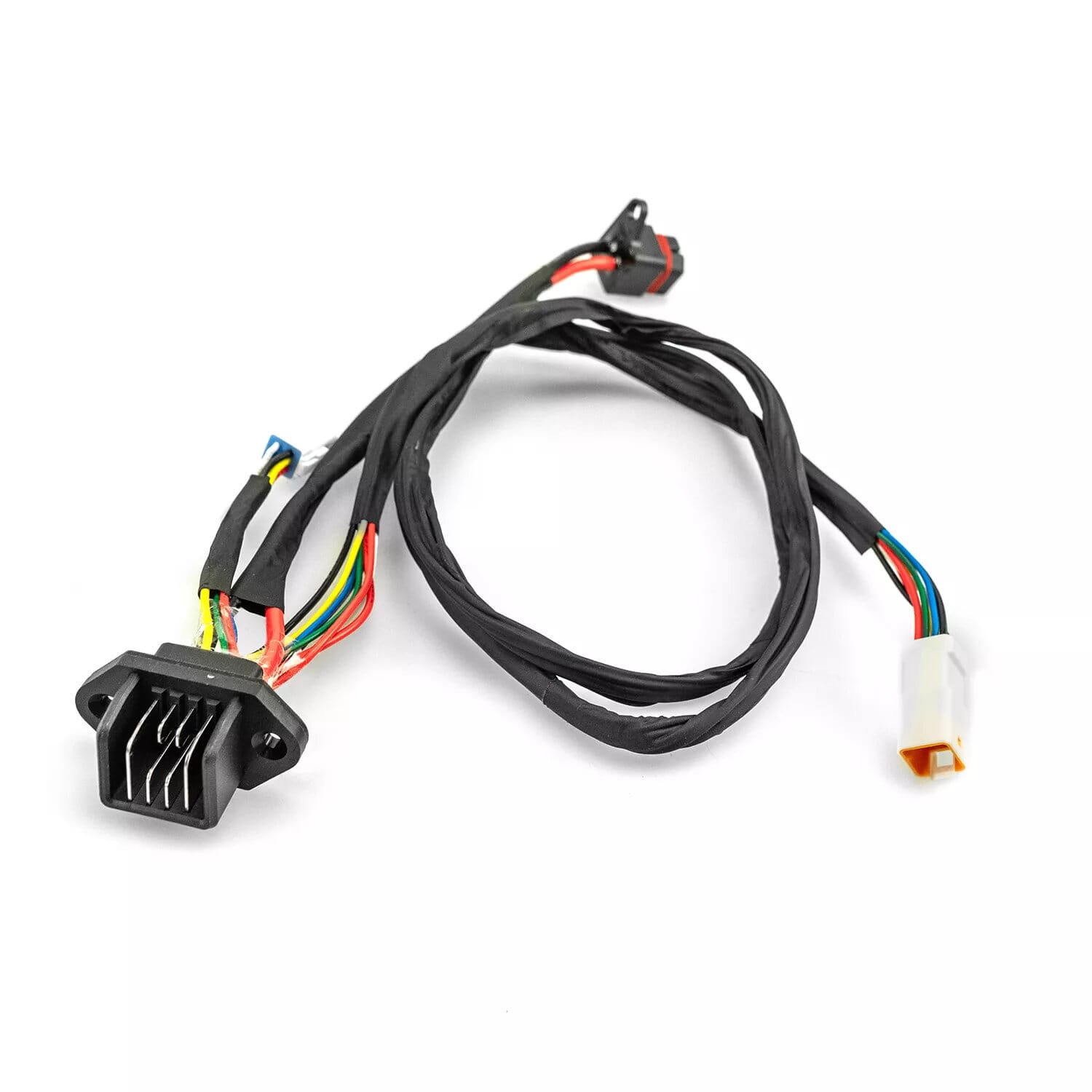

The Pinion MGU battery cable harness is the central connecting piece of your eBike drive. The motor, display and charging connection are connected to the battery via four connections. Depending on where the charging connection is located on your Pinion eBike, you will need a battery cable of the appropriate length.
Features of the Pinion MGU motor main cable
- Connection cable from battery to motor
- incl. connections for display & charging port
- 1x FIT battery terminal (battery)
- 1x JST JWPF 8-pin male (charging socket)
- 1x JST JWPF 6-pin female (display)
- 1x Pinion power plug (motor)
Note: The Pinion wiring harnesses differ only in the length of the cable to the charging port. eBikes with the option for an additional battery require the Pinion MGU battery wiring harness for range extenders with five connections. If you have any questions, please contact our customer service.
Specifications
Manufacturer: | FIT E-Bike System, Pinion |
FIT E-Bike System Integration: | FIT 2.0 |
Drive system: | Pinion Drive |
Pinion Drive System: | Pinion E1.12 MGU |
Item: | Pinion MGU battery wiring harness |
Scope of delivery: | 1x Pinion MGU battery wiring harness |
Colour: | black |
Compatibility: | eBikes with Pinion MGU drive without range extender |
Maker's ref. no.: | 160 mm: 500251 | 550 mm: 501040 | 1,000 mm: 501204 |
Cable length: | Display cable connection: 70 mm; Motor connection: 200 mm; Charging port connection: 160 mm / 550 mm / 1,000 mm |
