Ortlieb Quick Rack luggage rack

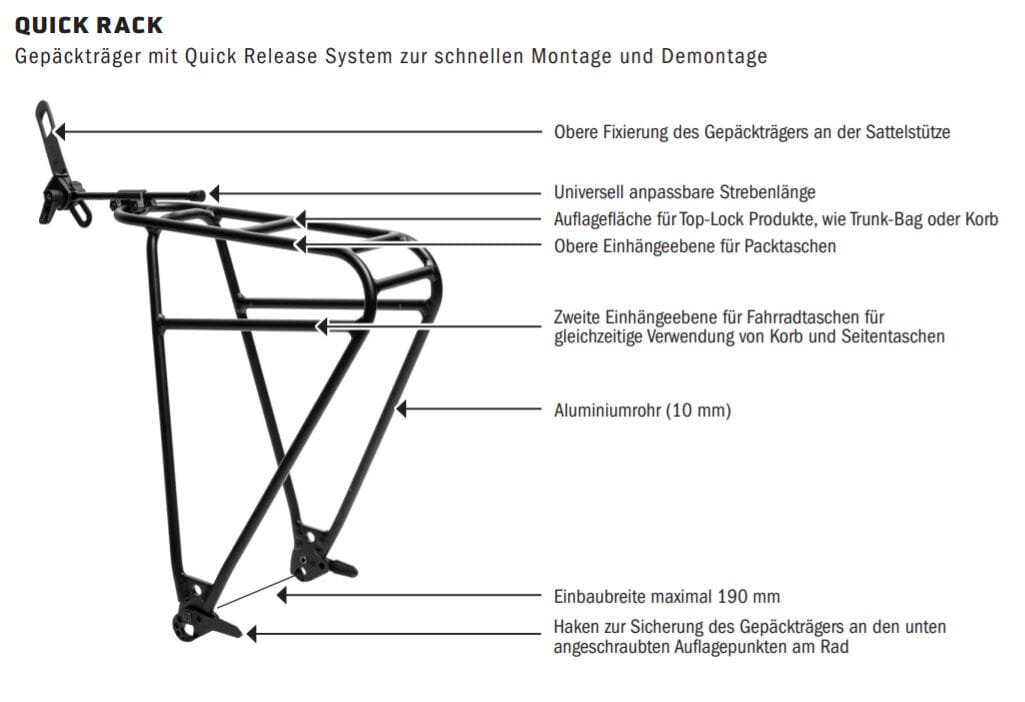

Preview: Quick Rack Preview: Quick Rack Facts
Quick Rack
Quick Rack Facts

79.99€

Prices incl. VAT plus shipping costs

  • Item number: 7594
  • Manufacturer Part Number: F78104
  • EAN: 4013051054614

Delivery time to Germany 1-2 business days

Description Reviews 0
Close menu

The Quick Rack luggage rack from Ortlieb is the solution for all those who only want to use one bike for sporting use and daily commuting or bike tours. With a little practice, the Quick Rack can be mounted on the bike in 15 seconds and dismounted again in only 5 seconds. This allows you to switch back and forth from a sporty look to everyday suitability without much thought and within a few moments.

Features of the Quick Rack

  • Lightweight rack with Quick Release System for quick assembly and disassembly on the bike
  • 5/15 method, 15 seconds for assembly, 5 seconds for disassembly
  • Leaves a clean bike, no fixed luggage rack
  • Can be used on Fullys
  • Universally adaptable due to different strut lengths
  • Allows direct attachment of all panniers with QL1/2.1/3.1 and Top-Lock system
  • Suitable for wheel sizes 26"/28" and 29" with limited compatibility
  • Horizontal and vertical struts with 10 mm tube diameter
  • Mounting set; no further mounting parts necessary
  • Preparation for optional rear light (light not included)
  • Maximum load 15 kg

Specifications
Manufacturer: Ortlieb
Weight: 580g
Scope of delivery: 1x Ortlieb Quick Rack, 2x screw-on support points each (M5 & M6), 1x additional extra-long mounting strut (300mm), preparation for optional rear light, mounting elements for Ortlieb QL3/3.1
Colour: Black
Compatibility: for all e-bikes and bikes with 26"/28", as well as limited for 29" wheels | compatible with Ortlieb Quick Lock3/3.1 fastening system
Material: Aluminium
Mounting: on luggage carrier mounts with M5/ M6 thread & on seat post
maximum load: 15 kg
