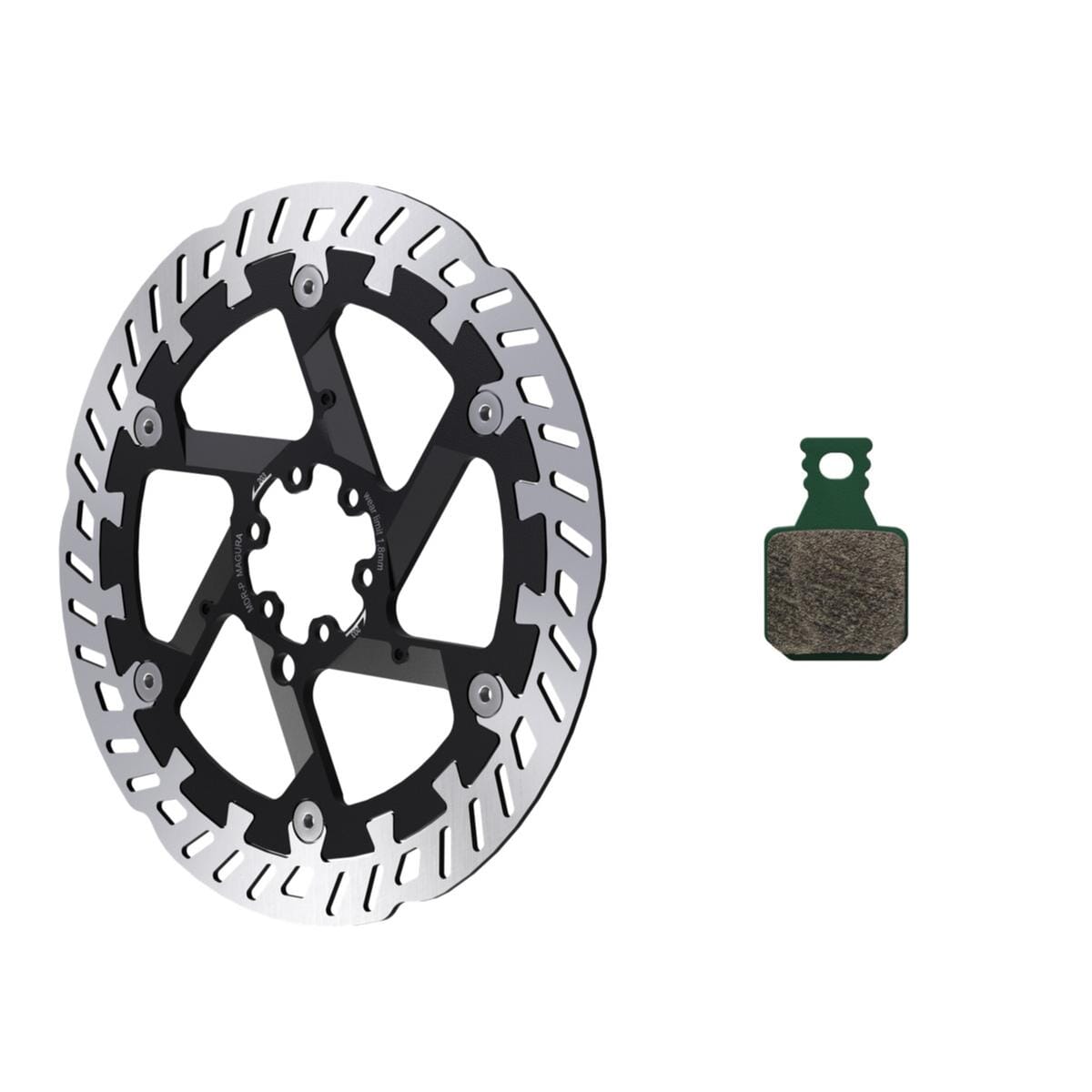

MAGURA MT eSTOP Optimised Kit MDR-P 203

59.90€ RRP 69.50€ (13.81% Saved)

Item number: 3001
Manufacturer Part Number: 2702028
EAN: 4055184026120

currently not available

Please inform me as soon as the product is available again.

The MAGURA MDR-P brake disc was specially developed for higher braking loads in the eBike and Gravity range. The patented MAGURA Dovetail Interlink technology is a particularly impressive feature of the brake disc. The special interlocking of the outer and inner ring is of great importance. When the outer ring expands due to heat, the inner ring provides additional support. Thus, the torque is transmitted over the entire surface instead of only over the rivets. Ultimately, this ensures increased stiffness of the brake disc and particularly direct heat dissipation under continuous load.

The brake disc is compatible with the complete Magura MT series.

Note: The 6-hole brake discs are not compatible with Centerlock adapters!

The newly developed MAGURA sports pad is designed exactly for the requirements of eBikes. With the new pad compound, a high braking force, less wear and a short braking time have been realised.

Brake Disc	Ø 140 mm	Ø 160 mm	Ø 180 mm	Ø 203 mm	Ø 220 mm
Fork
IS		QM 43	QM 12	QM 5
PM 6"		direct	QM 40	QM 42
PM 7"			direct	QM 44	QM45
PM 8"				direct
Rear triangle
IS		QM 12	QM 41	QM 9
PM 5"	direct	QM 40	QM 45
PM 6"		direct	QM 40	QM 42
PM 7"			direct	QM 44	QM45
PM 8"				direct

Manufacturer:	Magura
Item:	MAGURA MT eSTOP Optimised Kit MDR-P 203 - 8.S Pad
Scope of delivery:	1 MAGURA MDR-P brake disc Ø 203, 6-hole Brake disc bolts 1 set of brake pads (4 single pads MAGURA 8.S, Sport)
Model year:	2020
Item number:	3001
Compatibility:	4-piston MAGURA MT brakes
Maker's ref. no.:	2702028
Material:	Spider: aluminium, brake disc: steel
Brake disc diameter:	203 mm
Brake disc mount:	6-hole
