- Item number: 9344-001
- Manufacturer Part Number: d8750
- EAN: 4260689654000
The new SL MiniMax from Lupine for eBikes is equipped with up to 2100 lumens of high beam, low beam and daytime running light, is suitable for a wide range of drive systems and is approved for road use.
Features Lupine SL MiniMax
- suitable for Bosch, Bosch BES3, Brose, Giant, Shimano & TQ
- eBike lamp with daytime running light, high beam and low beam
- approved for road traffic
- impact resistant and waterproof
- with Bluetooth remote control
- made of CNC-milled aluminium
Simple operation
The brightness sensor detects when it gets dark and automatically switches from daytime running light to low beam.

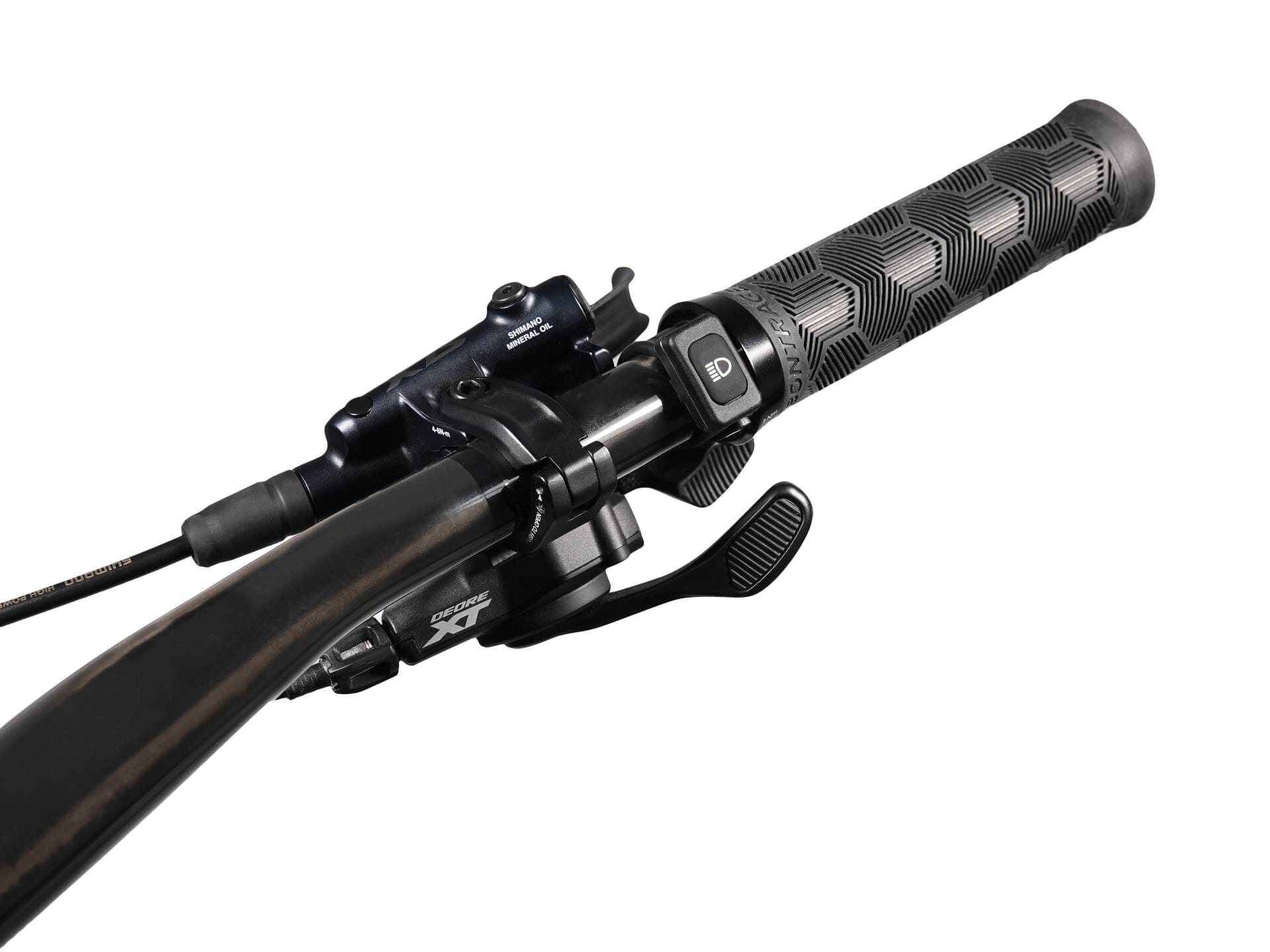

This illuminates the road with 900 lumens without dazzling oncoming traffic. The lamp head, which weighs 100 g, is connected via a cable to the remote control, which can also be used to switch manually between low and high beam.
The symbol on the remote control lights up blue as soon as the light is switched on. The SL MiniMax illuminates up to 210 m brightly and evenly.
High-quality workmanship and practically indestructible

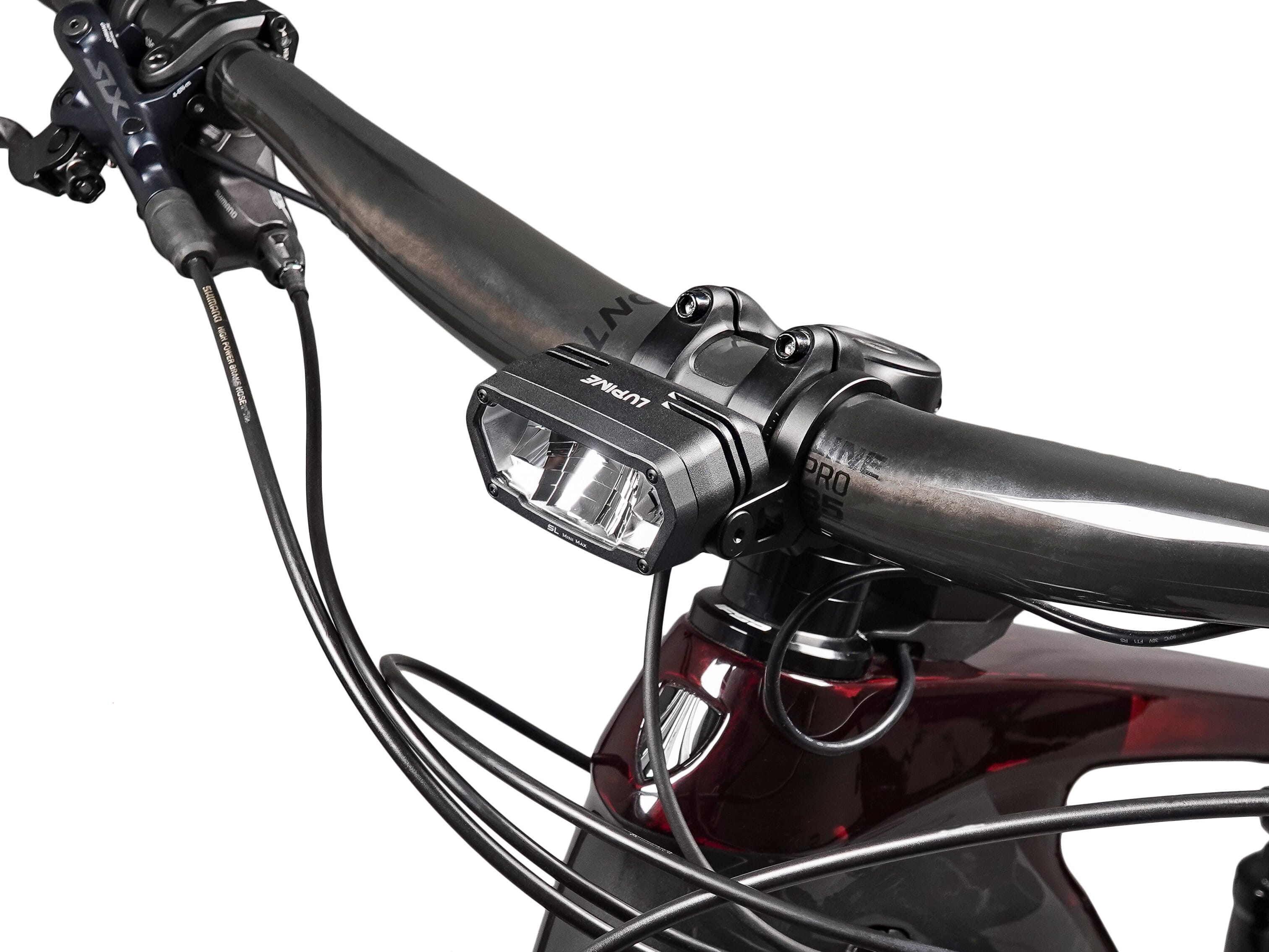

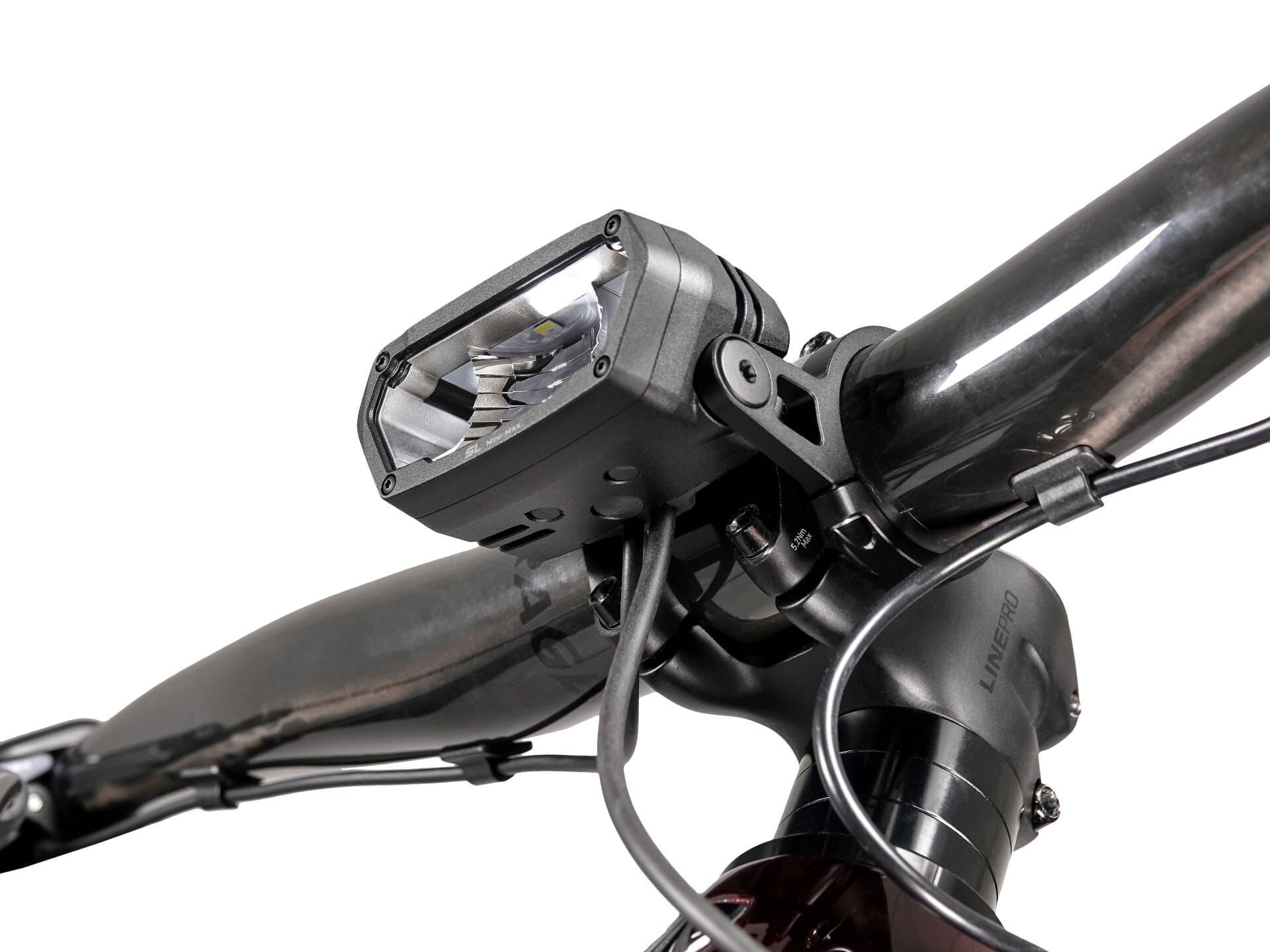

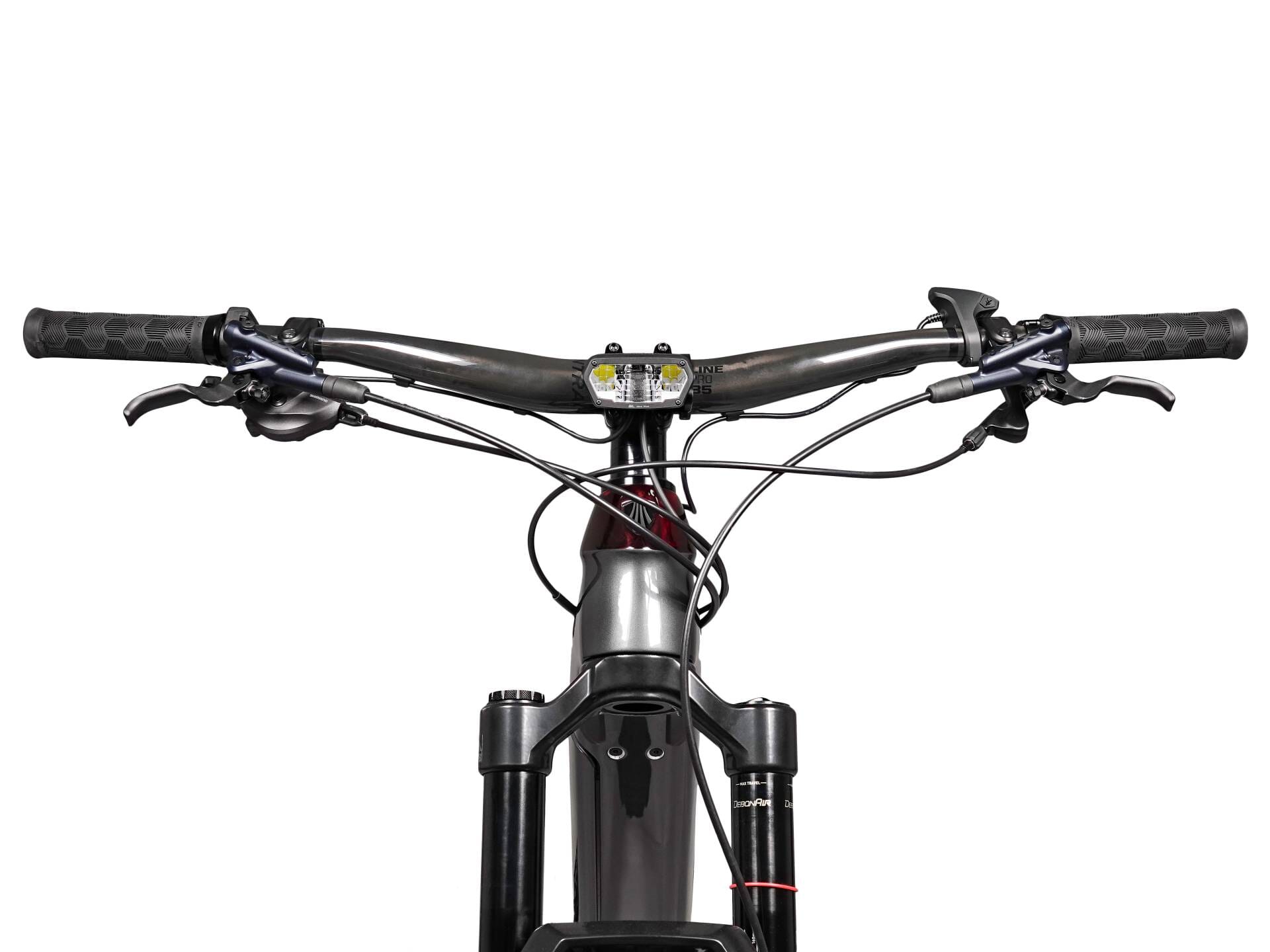

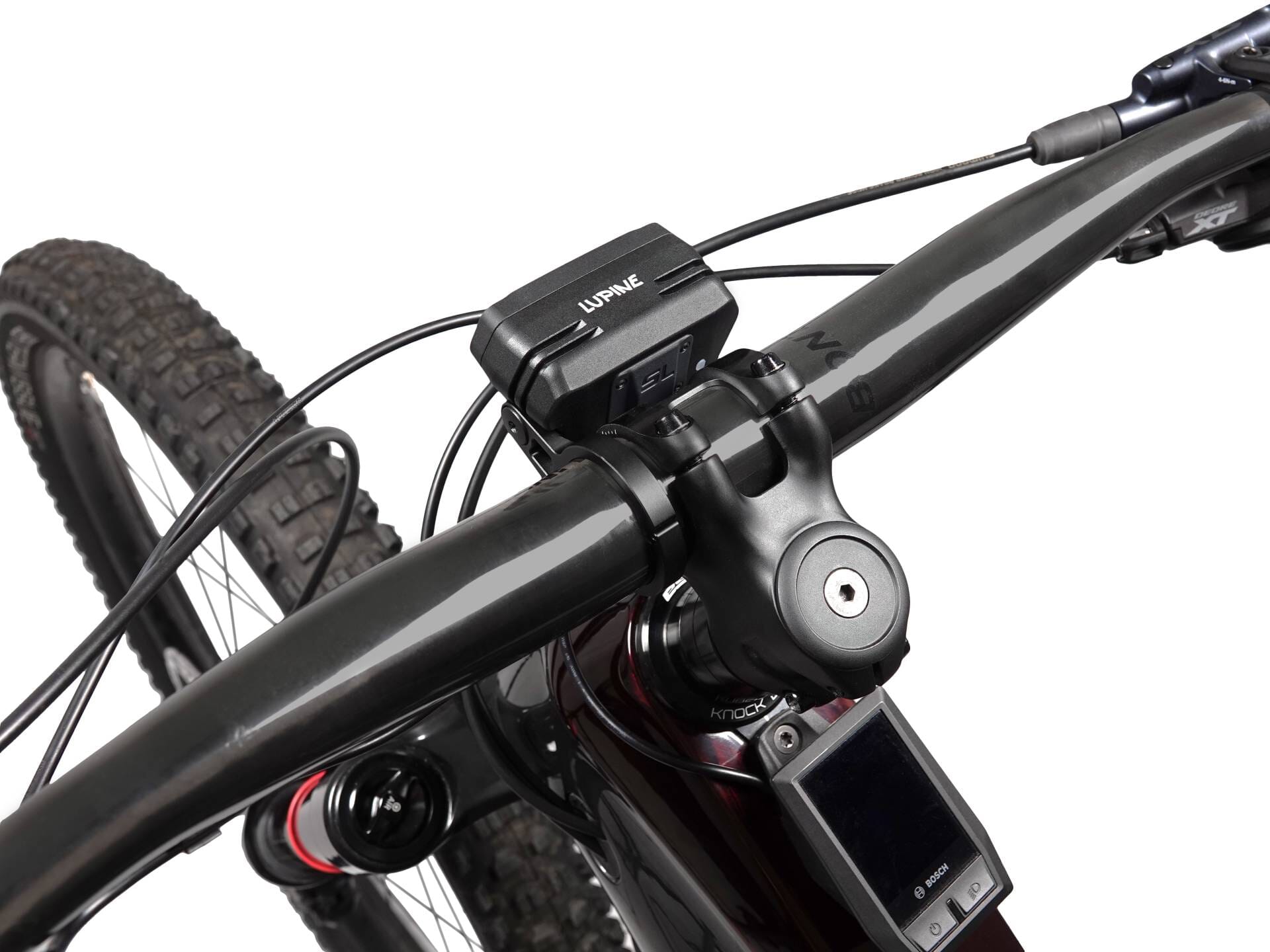

With the round handlebar holder made of CNC-machined aluminium, the lamp is mounted firmly next to the stem and thus sits symmetrically in the centre of the handlebar. The housing, also made of CNC-milled aluminium, is black anodised and particularly robust, durable and heat-resistant.
In addition, the SL MiniMax is waterproof and shockproof according to IK09 and IP67 certificates. The lamp switches on automatically when the eBike's motor is switched on and to switch it off, all you have to do is hold down the button on the remote control.
Drive system: | Bosch drive, Brose drive, Giant drive, Shimano drive, TQ drive |
Manufacturer: | Lupine |
Power source: | eBike battery |
High beam: | High beam |
Light mounting position: | Handlebar |
Supply voltage : | 6 V, 12 V, > 12 V |
Max. power consumption: | > 12 W |

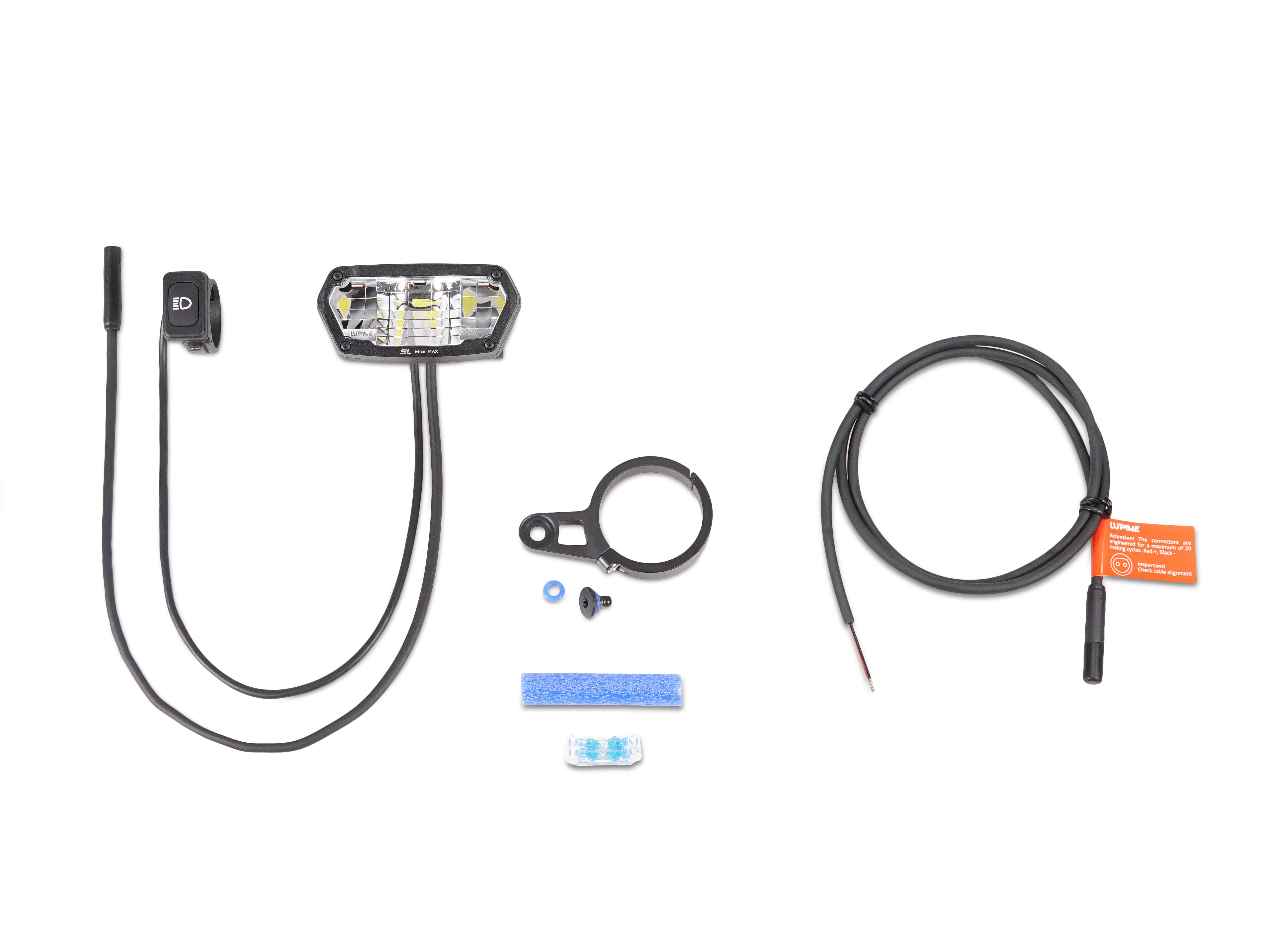

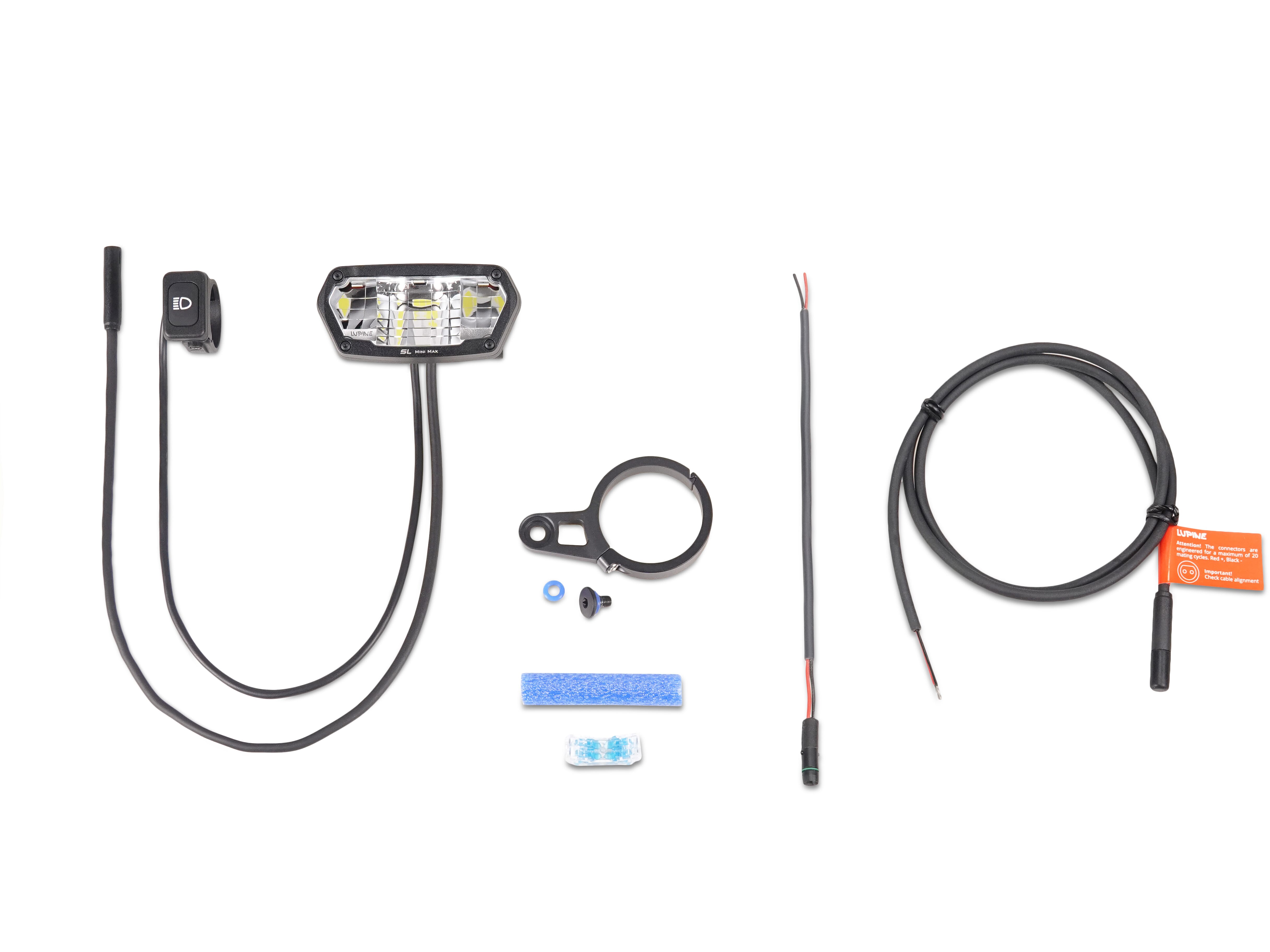

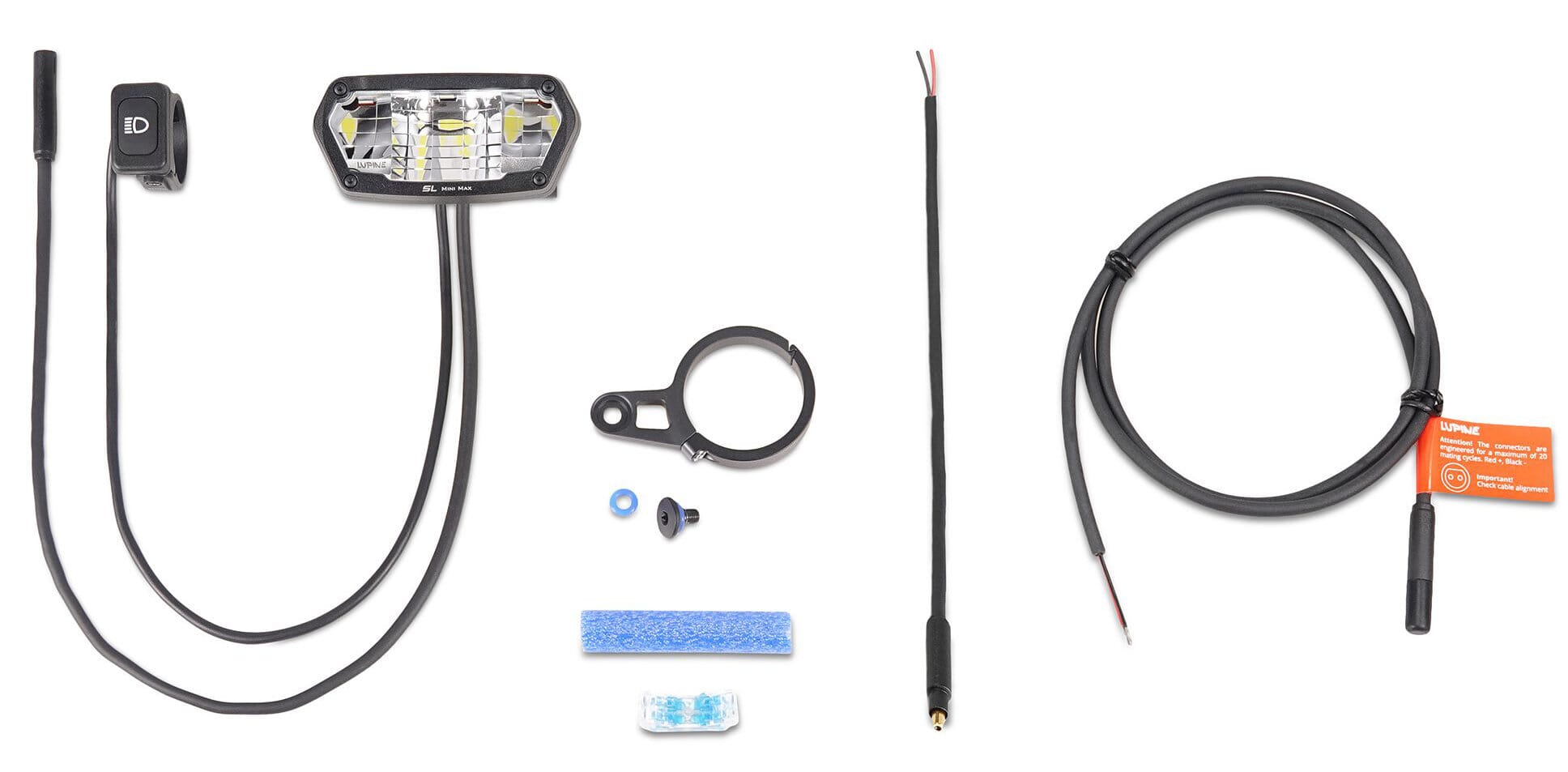

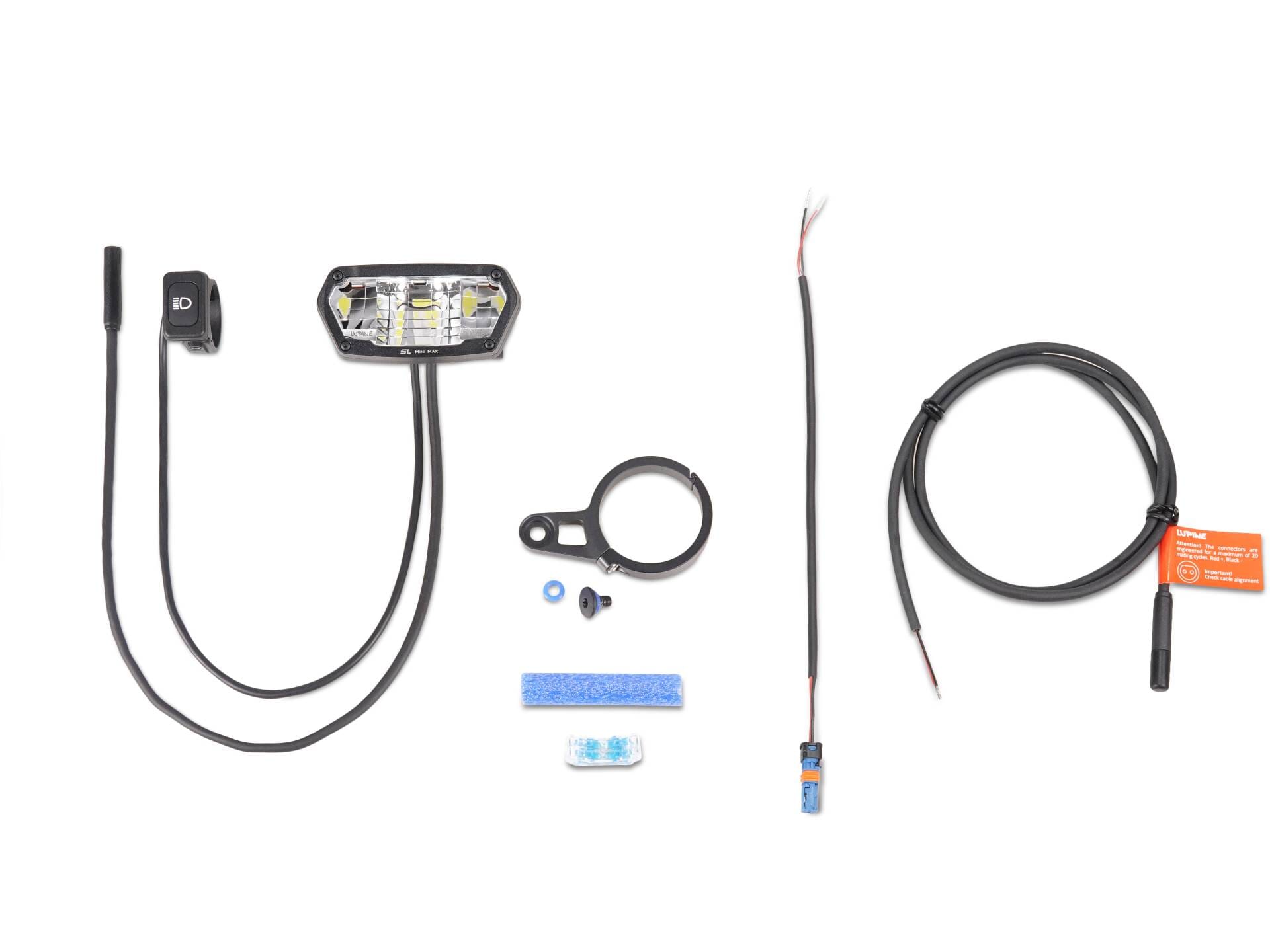

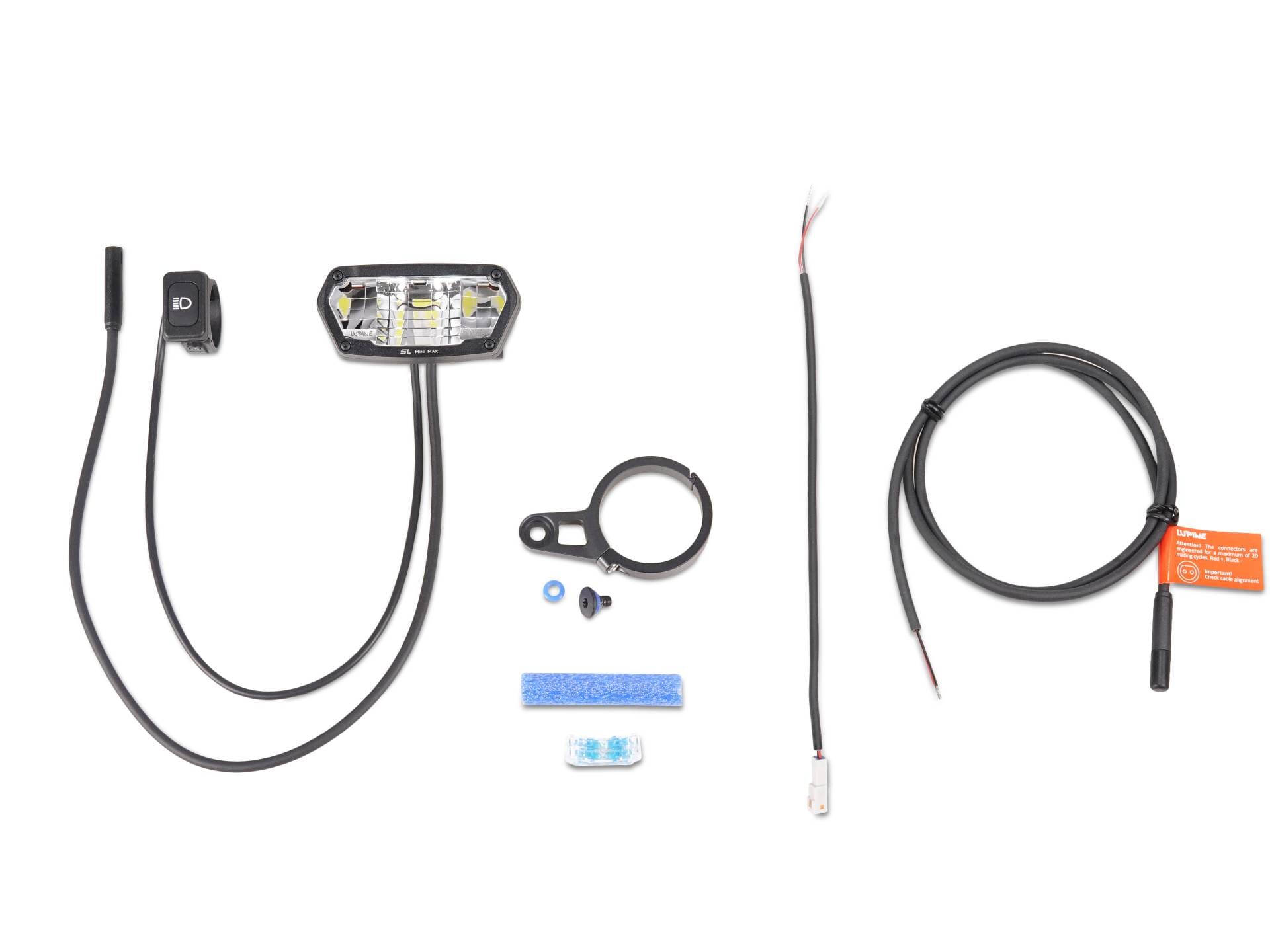

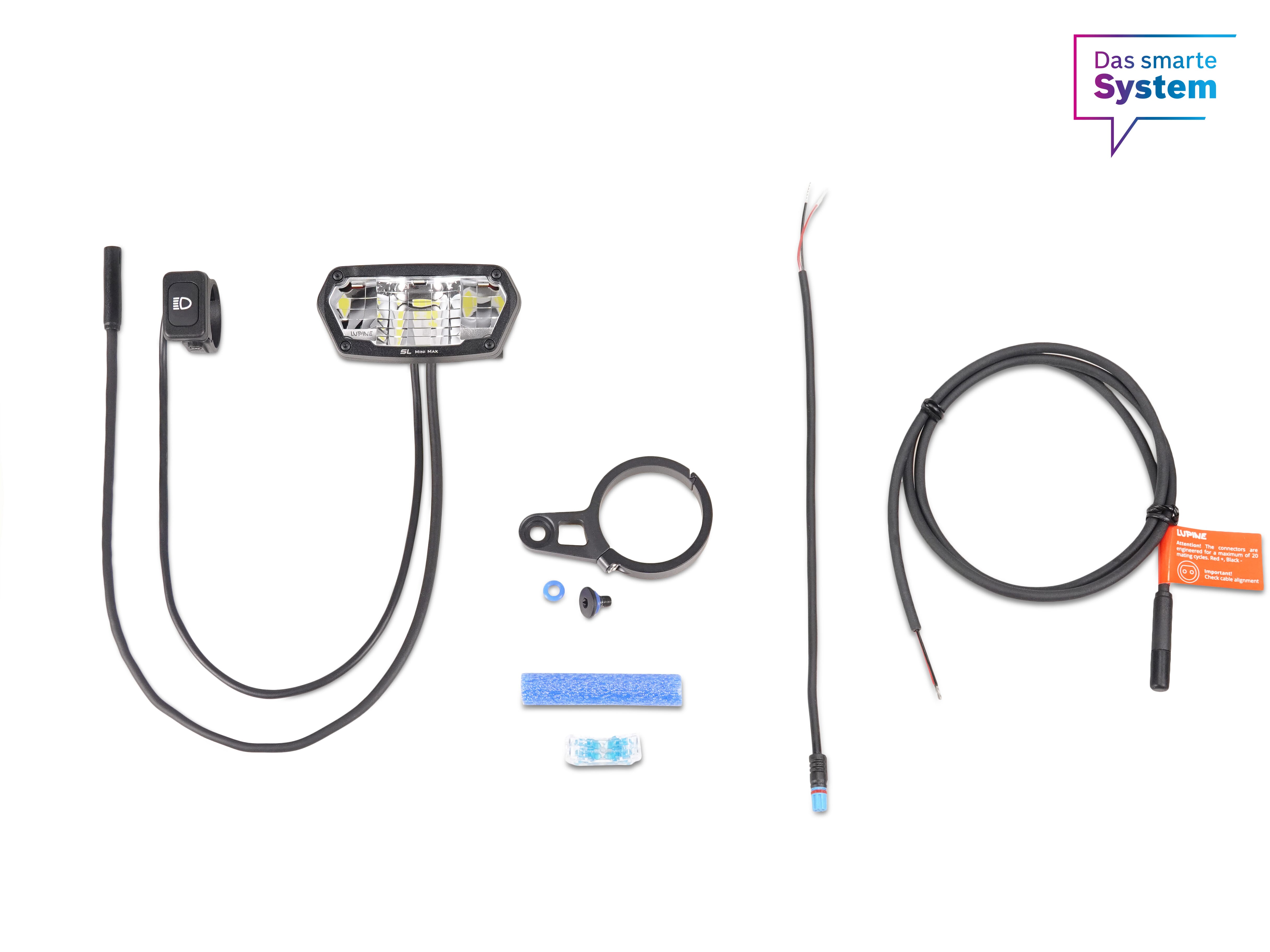

Scope of delivery: | SL Minimax lamp head, Wired remote control, Handlebar bracket 35 mm or 31.8 mm, bracket screw & O-rings, Light cable set with connector, Wolf head blind plug, instructions |
Measurements: | 37 x 69 x 34mm |
Range: | 210 m |
Compatibility: | Bosch, Bosch BES3, Brose, Giant, Shimano, TQ |
Material: | Aluminium CNC-milled (6061-T6), black anodised |
Light output: | 2100 lumen | 250 lux |
StVZO approval: | Yes (~K2258) |
Certification: | IK 09 (impact resistance), IP 67 (waterproof) |
