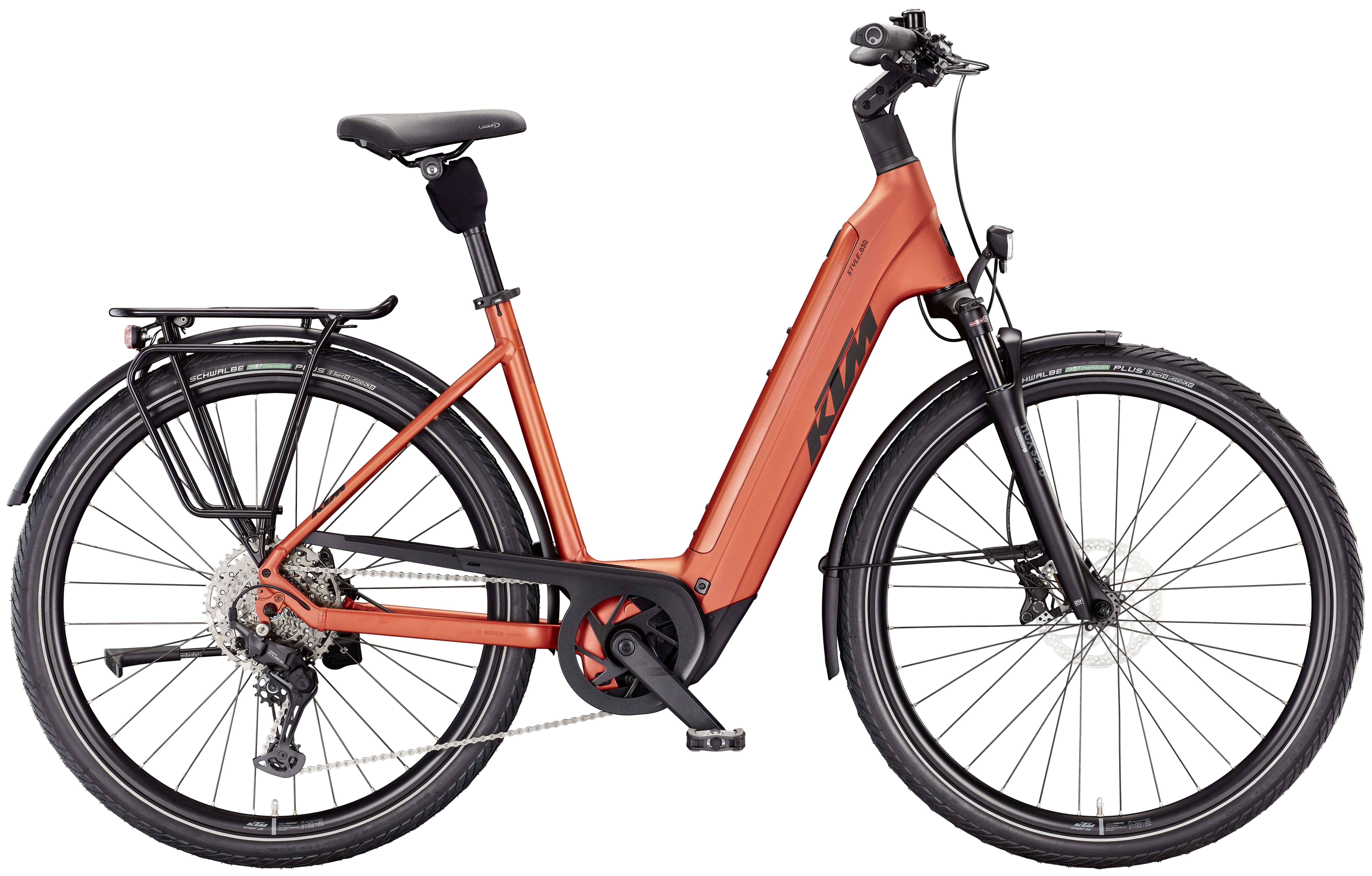

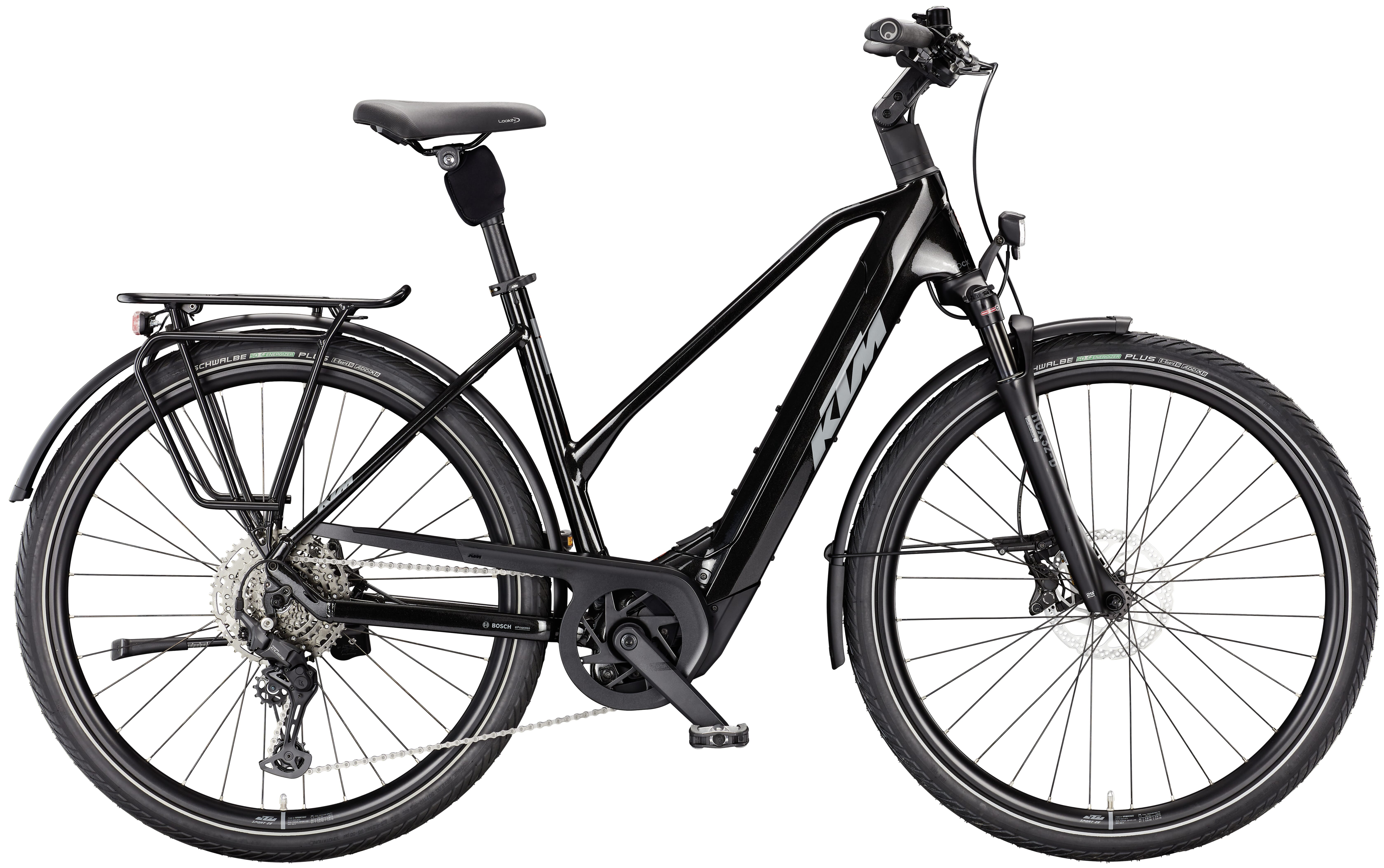

KTM Macina Style 830 - 2025

4,199.00€

Prices incl. VAT plus shipping costs

  • 10388-002
  • 1250154106
  • 9008594494930

colour:

Frame Size:

frame shape:

Set off to rediscover your surroundings - with the KTM Macina Style 830. Glide comfortably along the cycle paths of your region and experience wonderful moments. With the support of the powerful Bosch Performance Line CX Gen.5 motor and the large 800 Wh Intube battery, you can expand your radius of action. The Style 830 offers you excellent equipment with a suspension fork, suspension seat post and reliable Shimano Cues eBike gears. The Shimano MT4 disc brake with 4-piston ensures fast and safe braking. The KTM Macina Style 830 is also equipped with a complete touring kit including: Luggage rack, mudguards and kickstand. And even if it gets a little late, you'll reach your destination safely thanks to the high-quality Busch and Müller lighting system.

Features of the KTM Macina Style 830

  • Stylish trekking eBike
  • Bosch Perf. Line CX Gen.5 motor - 85 Nm
  • Bosch PowerTube 800 Wh removable
  • Shimano Cues 10-speed gears
  • Shimano MT4 disc brakes
  • Full touring equipment
  • Busch and Müller lighting system

eBike24 recommends: The KTM Macina Style 830 is a great trekking eBike with solid equipment and great value for money - ideal for touring and leisure cyclists.

Specifications
E-Bike Types: Trekking e-Bikes
Model year: 2025
Battery capacity: 800 Wh - 899 Wh, Dual Battery compatible
Drive system: Bosch drive
Manufacturer: KTM
Frame type: Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type: Derailleur - chain drive
Battery option: Dual Battery compatible
Battery position: Intube battery / frame integrated
Bosch System: Bosch Performance Line CX from 2025 Smart System
Frame: Macina Trekking Onroad Alloy 6061
Fork: Suntour NCX32-D coil LO 63mm
Battery: Bosch PowerTUBE 800Wh horizontal
Tyres: Continental E-Contact Plus 50-622
Saddle: Selle Royal Lookin Man
Seat post: Suntour SP17-NCX Suspension 30.9/350
Carrier: KTM tour (Snap-it 2.0 + Monkeyload)
Weight: 27.9 kg
Item: KTM Macina Style 830 - 2025
Colour: DIAMOND BLACK | BURNT ORANGE MATT
Stem: KTM Line adjust. 0-60° ICR
Display: Bosch INTUVIA LCD Display
Side stand: KTM 28" bike stand MY2025, adjustable
Wheels: KTM Line - Shimano Deore M5100
Spring travel: Front: 63mm
Grips: Ergon GP30
Motor: Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Rear light: B&M Toplight 2C
Front light: B&M Briq-S 60Lux
Pedal: Trekking pedal VP-616 anti-slip
Wheel size: 28"
Handlebar: KTM Line Rizer20 640mm
Crank: KTM E-Comp2 ISIS 170mm Q8
Cassette: Shimano LG400-10 / 11-48
Rear derailleur: Shimano CUES U6000-11/10 LG shadow+
Chain: Shimano LG500
Shift lever: Shimano CUES U6000-10 display
Charger: Bosch Standard Charger 4A
Disc brakes: Shimano RT30 CL 180 / RT30 CL 160
Control unit: Bosch LED Remote
Brake: Shimano MT402 (3-F) / MT420 4-piston
