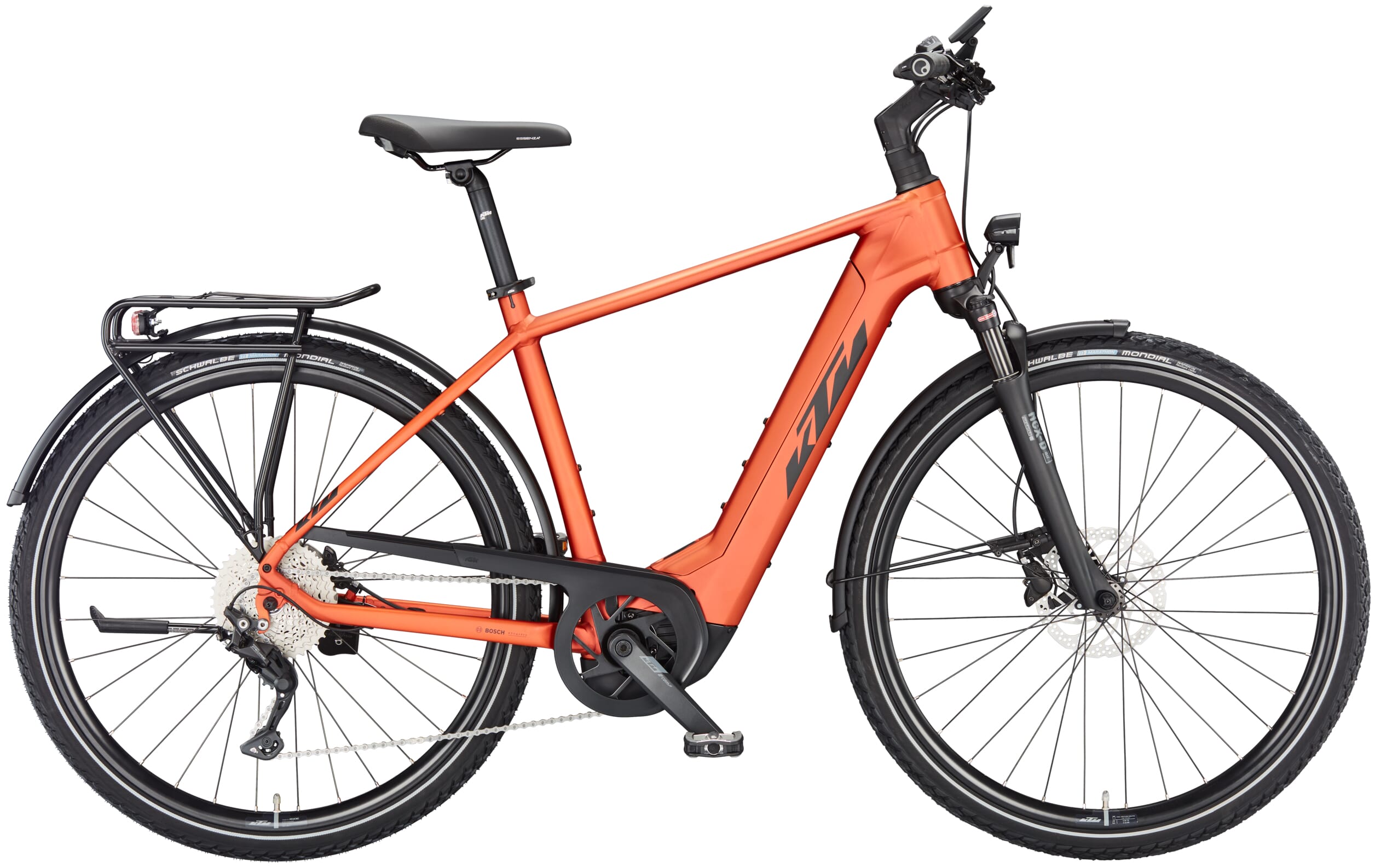

KTM Macina Sport 510 2024

Preview: KTM Macina Sport 510 2023 Ladies

From 3,699.00€

Prices incl. VAT plus shipping costs

Item number: 8270-001
Manufacturer Part Number: 1230136106 / 023363106
EAN: 9008594472662

Close menu

The MACINA SPORT 510 is the perfect eBike for all adventure seekers and sports enthusiasts. With its impressive design with raised chainstays that merge directly into the main tube, it offers an outstanding riding experience.

Features of the Macina Sport 510

Reduced, sporty shape
Bosch Performance CX motor
large Powertube battery
Shimano Deore rear derailleur
Busch and Müller lighting system
Schwalbe Marathon tyres

More riding pleasure

The Macina is available in three different frame styles. These include the Power Tube Sport (PTS) version. The powerful Bosch Performance CX motor and a Powertube battery are used. The high-quality frame design provides stability, while the integrated suspension fork ensures a comfortable ride on different terrain. Whether you are riding on asphalt, gravel or off-road, the Macina Sport 510 offers you a safe and agile ride.

E-Bike Types:	Trekking e-Bikes
Model year:	2023
Battery capacity:	500 Wh or more
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Ladies / Trapeze, Low-entry / Wave, Mens
Derailleur/drive type:	Derailleur - chain drive
Bosch System:	Bosch Performance Line CX from 2022 Smart System
Battery position:	Intube battery / frame integrated
Frame:	Macina Trekking Onroad Alloy6061 PT750Wh Bosch Gen.4 / T-2940
Fork:	Suntour NCX-D Air LO 63mm
Battery:	Bosch PowerTube 500 Wh Smart System horizontal
Tyres:	Schwalbe Marathon Mondial Perf. RaceGuard 47-622
Saddle:	Selle Royal Essenza+
Seat post:	KTM Team 30.9/350
Carrier:	KTM light (snap-it 1.0)
Item:	KTM Macina Sport 510 2024
Colour:	Burnt Orange matt (black+grey)
Model year:	2024
Stem:	KTM Line 20° internal
Display:	Bosch Intuvia 100
Side stand:	KTM 28" adjustable
Wheels:	front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Ryde Rival Sport 32H 622x25C DT Champion 2.0 black \| rear: KTM Line - Shimano Deore M6000 CL 32H 135-5QR Ryde Rival Sport 32H 622x25C DT Alpine II 2.34 black
Mudguard:	SKS A55K 55mm black matt
Spring travel:	63 mm
Grips:	Ergon GP1 SD
Motor:	Bosch Performance CX Gen.4 Smart System - 85 Nm
Headset:	Acros AICR internal 1.1/8"-1.5" angle limit
Rear light:	B&M Toplight 2C LED
Front light:	B&M Lumotec DOPP LED 35Lux
Pedal:	Trekking-Pedal VP-616 anti-slip
Wheel size:	28"
Handlebar:	KTM Line low rizer 640mm
Permissible total weight:	143 kg
Crank:	KTM E-COMP ISIS 170mm Q16
Cassette:	Shimano Deore M4100-10 / 11-42
Rear derailleur:	Shimano Deore M4120-10 SGS shadow
Chain:	KMC e10 EPT e-bike
Shift lever:	Shimano Deore M4100-10 display
Chainguard:	yes - KTM type 7 for Bosch Gen.4
