- Item number: 10776-001
- Manufacturer Part Number: 1250043103
- EAN: 9008594491786

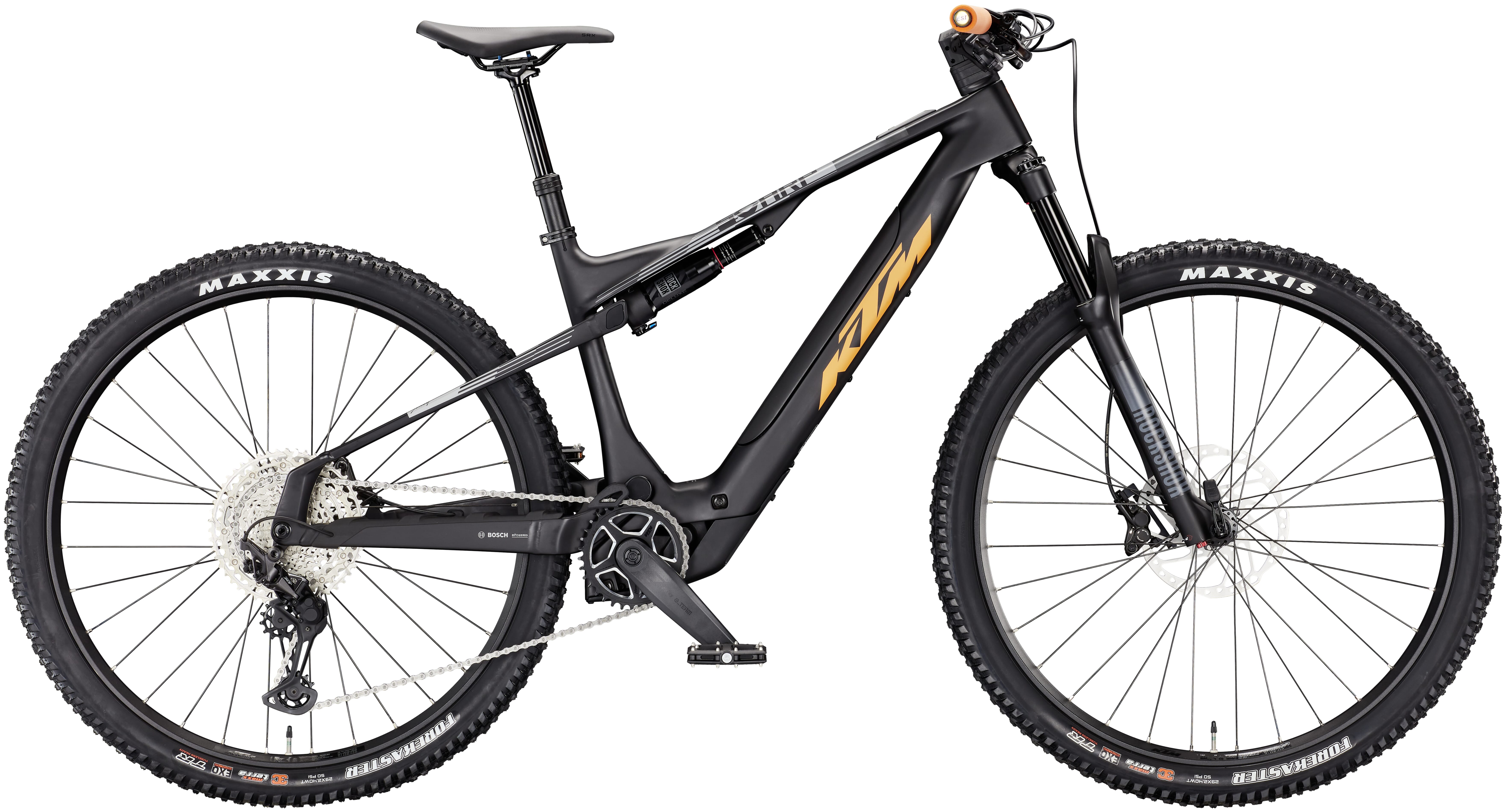

With the KTM Macina Scarp SX Elite 2025, you get a premium e-mountainbike with high-quality components. It is designed for demanding trails and rides over very uneven terrain. The RockShox Recon Gold RL 29" fork and the RockShox Deluxe Select+ damper ensure a pleasant riding experience at all times. The Macina Scarp 29" premium frame is made of carbon, which makes the fully eMTB particularly light. The Bosch CompactTube 400Wh is integrated into the frame. This reliably supplies the Macina Scarp SX Elite with the necessary power. The Bosch PowerMore 250Wh Range Extender (available separately) can also be connected to the E-MTB for more range. At the heart of the fully e-MTB is the Bosch Performance Line SX motor, which provides powerful support. The Smart System is controlled via the Bosch System Controller in the top tube and the Bosch Mini Remote on the handlebars. The System Controller shows you the current support level and battery status via an LED display. Use the Mini Remote to set the desired riding mode. If you want to view more riding data, you can retrofit a Bosch Smart System Display to the KTM E-MTB.
eBike24 recommends: The Macina Scarp SX Elite is the ideal companion for rides on demanding trails. Its light weight makes it particularly manoeuvrable and fast. This makes it very easy to control and it corners perfectly.
Features of the KTM Macina Scarp SX Elite - 2025
- Fully E-MTB with Bosch Smart System
- Bosch Performance Line SX
- Bosch CompactTube 400Wh
- Bosch System Controller & Mini Remote
- RockShox fork & damper
- 29" carbon frame
- compatible with PowerMore 250Wh
E-Bike Types: | E-Mountainbike (e-MTB), Fully e-MTB, Light E-MTB |
Model year: | 2025 |
Battery capacity: | 400 Wh - 499 Wh |
Drive system: | Bosch drive |
Manufacturer: | KTM |
Frame type: | Mens |
Derailleur/drive type: | Derailleur - chain drive |
Battery option: | Dual Battery compatible |
Bosch System: | Bosch Performance Line SX from 2024 Smart System |
Battery position: | Intube battery / frame integrated |
Frame: | Macina Scarp 29" Premium Carbon SLL-E 140mm UDH CPT400 Bosch BDU31 / M-4830 |
Fork: | RockShox Recon Gold RL 29" | 140mm 15x110 |
Battery: | Bosch CompactTube 400Wh SMART SYSTEM |
Tyres: | Maxxis Rekon EXO/TR 62-622 |
Saddle: | PROLOGO Proxim W450 Sport T2.0 Rails |
Seat post: | FOX Transfer Factory internal |
Weight: | 17.3 kg |
Colour: | FLAMING BLK MT (FRESH ORANGE) |
Display: | Bosch Mini Remote Flatbar SMART SYSTEM |
Compatibility: | Bosch PowerMore 250 Range Extender Smart System |
Damper: | FOX Float Factory 2-P 230x60 |
Maker's ref. no.: | 10776-001: 1250043103 | 10776-002: 1250043108 | 10776-003: 1250043113 |
Spring travel: | Front: 140mm | Rear: 140mm |
Grips: | ESI Chunky silicone |
Motor: | Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm |
Pedal: | MTB pedal flat VP-539 nylon |
Wheel size: | 29" |
Handlebar: | KTM Prime II flat Carbon 740mm |
Crank: | KTM E-TEAM2 ISIS 170mm Q8 |
Rear derailleur: | Shimano XTR M9100-12 SGS shadow+ |
Chain: | Shimano M8100-12 |
Shift lever: | Shimano XTR M9100-12 |
Charger: | Bosch STANDARD Charger 4A SMART SYSTEM |
Size: | M = 43cm | L = 48cm | XL = 53cm |
Control unit: | Bosch Mini Remote Flatbar Smart System |
Brake: | Shimano Deore XT M8100 / M8120 4-Piston |
Bosch E-Bike System: | Bosch Smart System |
