- Item number: 8219-001
- Manufacturer Part Number: 1230004103 / 023303103
- EAN: 9008594470606

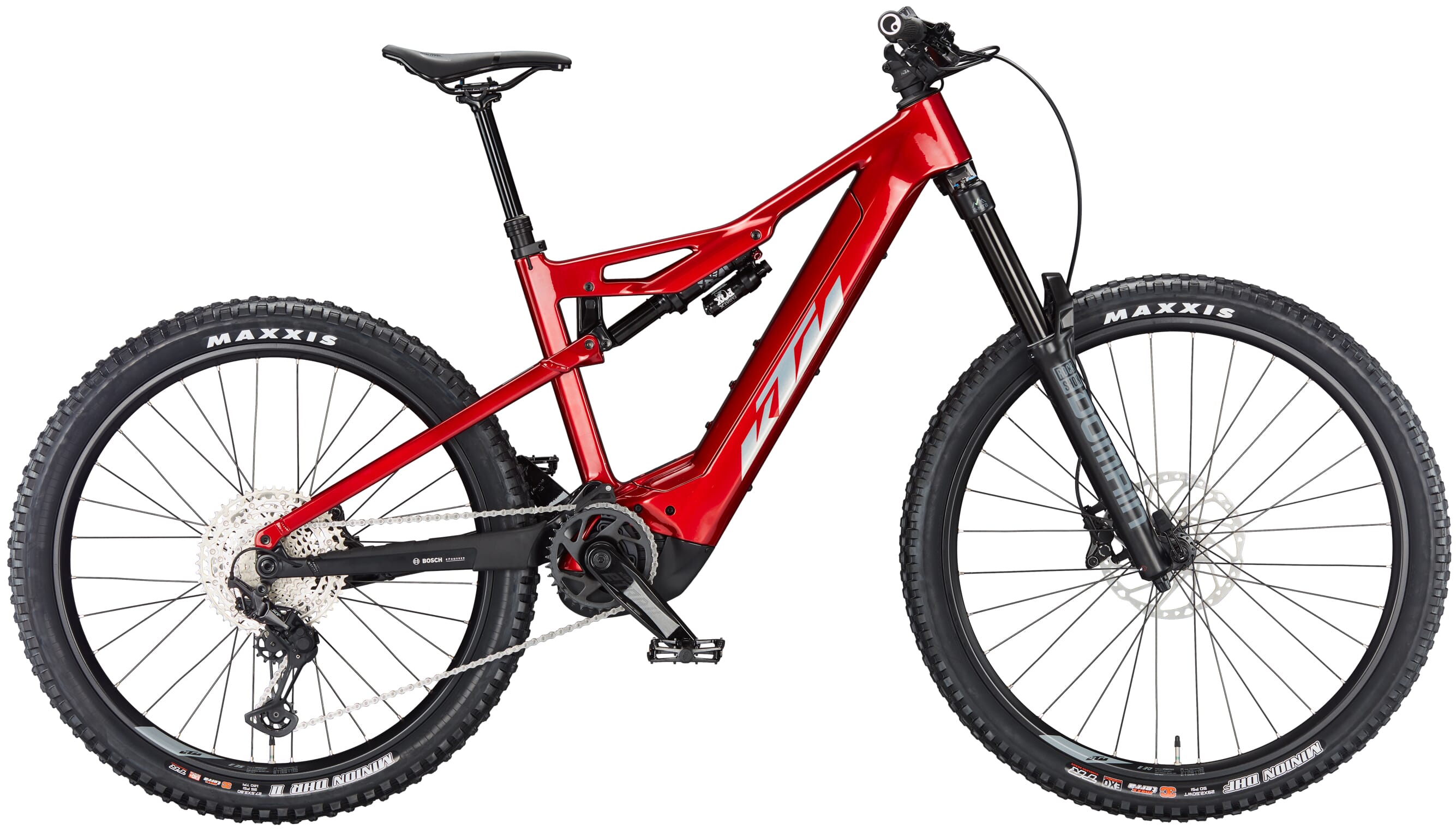

With the Macina Prowler Elite you have an eMTB on your side that belongs to the high-end group of KTM and makes every trail possible. The reason for this is an ultra-light carbon frame, the powerful Bosch Performance CX Smart System technology and the mix of RockShox suspension fork and FOX shock. This guarantees trail fun. The Shimano Deore (XT) shifting provides excellent shifting performance, even in challenging terrain. Pure riding fun on rough terrain is obvious with the Macina Prowler Elite.
FEATURES OF THE KTM MACINA PROWLER ELITE 2024:
- superlight 27.5HR/29VR inch Dimmix Performance Carbon frame
- powerful Bosch Performance CX Smart-System drive Gen.4, 85 Nm
- long-life Bosch Powertube 750 Wh battery pack
- soft RockShox Domain RC 29" air suspension fork with 180 mm travel
- soft FOX Float X performance damper
- Shimano Deore XT M8100 12-speed rear derailleur offers a wide range
- Sit on it, ride off, feel good
The mix of FOX/RockShox suspension elements can take hard successive hits with ease. In addition, a consistently high damper stroke provides superior traction characteristics and give you the ability to attack even the gnarliest drops and the toughest trails. Thanks to a lowerable seatpost you can adapt to new conditions in seconds.
The installed Shimano M4100 brake is with its 4-piston a reliable companion at high speeds and provide you with control and safety on all types of descents. The 1x12-speed drive with its huge gear ratio range ensures efficient pedaling on every ascent and descent and convinces with a good and precise shifting performance.
Ebike24 recommends: This bike is ideal for enduro use and can score with its high-quality parts and a great driving experience.
E-Bike Types: | E-Mountainbike (e-MTB), Fully e-MTB |
Model year: | 2024 |
Battery capacity: | 700 Wh - 799 Wh |
Drive system: | Bosch drive |
Manufacturer: | KTM |
Frame type: | Mens |
Derailleur/drive type: | Derailleur - chain drive |
Bosch System: | Bosch Performance Line CX from 2022 Smart System |
Battery position: | Intube battery / frame integrated |
Frame: | Macina Prowler Dimmix Perf. Carbon SLL-LTE 170mm UDH |
Fork: | RockShox Domain RC 29" 180mm 15x110 taper |
Battery: | Bosch PowerTube 750 Wh Smart System horizontal |
Tyres: | front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622 | rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584 |
Saddle: | Selle San Marco Ground Short Open Fit Narrow |
Seat post: | KTM Comp dropper internal |
Item: | KTM Macina Prowler Elite 2024 |
Colour: | Chrome Red (chrome+orange+blue) |
Model year: | 2024 |
Stem: | KTM Team Trail35 |
Wheels: | front: KTM Line - Shimano MT410B CL 32H 110-15TA Ambrosio E30 Trail 32H 622x30TC DT Champion 2.0 black | rear: KTM Line - Shimano MT410B CL 32H 148-12TA Ambrosio E35 Trail 32H 584x35TC DT Alpine II 2.34 black |
Damper: | FOX Float X Performance 250x75 |
Spring travel: | 180 mm/ 170 mm |
Grips: | Ergon GA20 |
Motor: | Bosch Performance CX Gen.4 Smart System - 85 Nm |
Headset: | Acros AICR internal 1.1/8"-1.5" angle limit |
Pedal: | MTB-Pedal flat VPE-527 Aluminum |
Wheel size: | 27.5"/ 29" |
Handlebar: | KTM Team Trail35 rizer25 800mm |
Permissible total weight: | 126 kg |
Crank: | KTM E-TRAIL ISIS 160mm Q16 |
Cassette: | Shimano Deore M6100-12 / 10-51 |
Rear derailleur: | Shimano Deore XT M8100-12 SGS shadow+ |
Chain: | Shimano M6100-12 |
Shift lever: | Shimano Deore M6100-12 |
Charger: | Bosch Smart System Standard Charger - 4A |
Disc brakes: | Shimano RT64 CL 203 / EM600 CL 180 |
Control unit: | Bosch LED Remote |
Brake: | Shimano M4100 / MT420 4-Piston |
GPS: | No - Bosch ConnectModule Ready |
