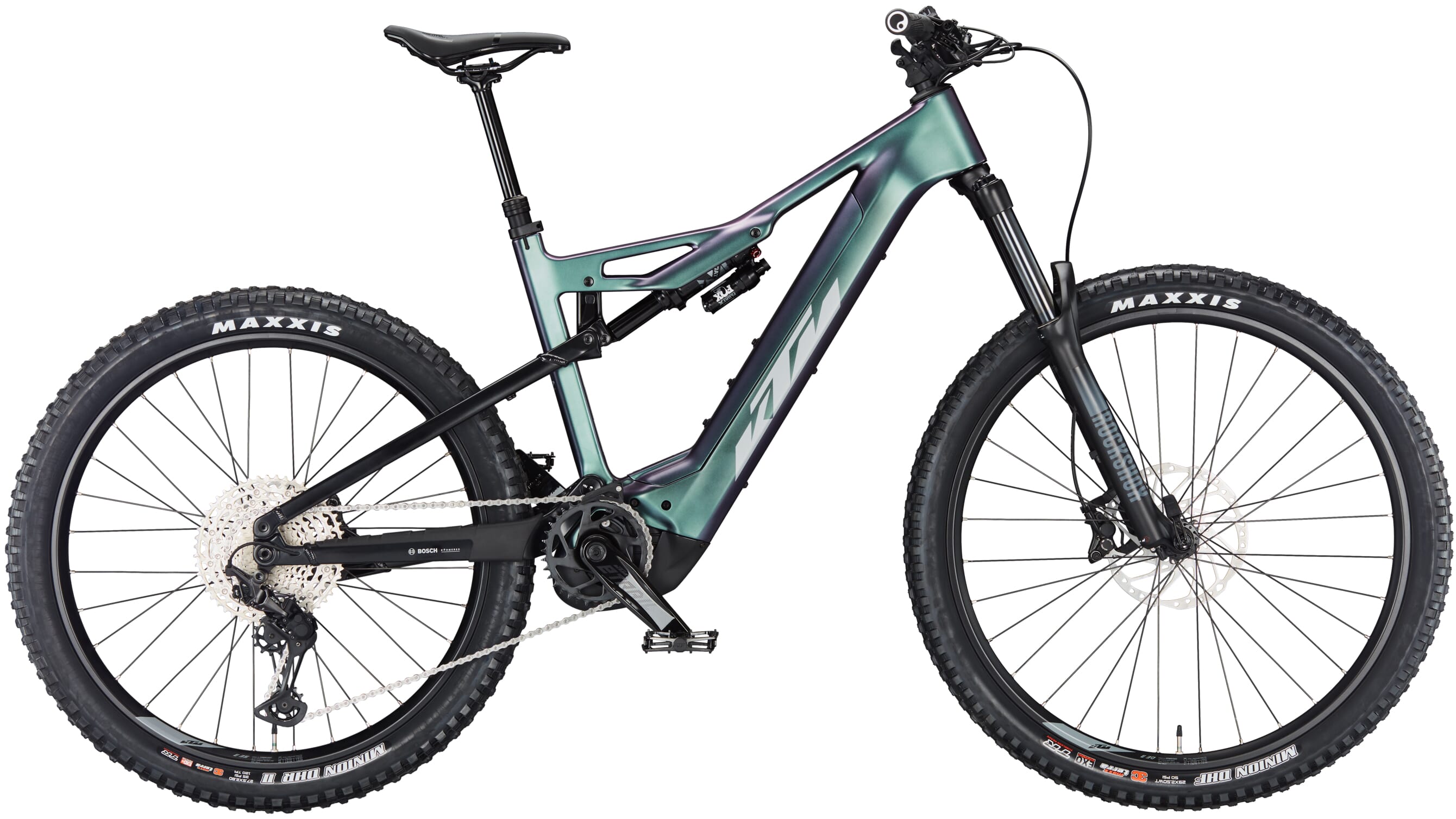

KTM Macina Kapoho Elite 2024 high-quality carbon EMTB

5,199.00€ RRP 6,399.00€ (18.75% Saved)

Item number: 8222-002
Manufacturer Part Number: 1230017103 / 023307103
EAN: 9008594470699

With its stable carbon frame and the high-quality selected components, the Macina Kapoho Elite clearly belongs to the high-end fleet of KTM. With it, you are definitely ready for long and demanding trails. The 160 mm of suspension travel effortlessly swallows away even the roughest roots and deepest holes. Downhill you also benefit from the advantages of the Mullet tires with breathtaking speed and agility. And also uphill it goes with unique power. This is ensured on the KTM Kapoho Elite by the Bosch Performance CX motor with 85 Nm. It is powered by the fully integrated PowerTube 750Wh battery.

Features of the KTM Macina Kapoho Elite 2024

Carbon Enduro & Allmountain E-MTB
Bosch Performance Line CX drive - 85 Nm
Bosch PowerTube 750 Wh battery
RockShox 35 Silver TK 29" 160mm
FOX Float X Performance 250x70 damper
Shimano Deore XT M8100-12 SGS shadow+ rear derailleur

Ebike24 recommends: The KTM Kapoho Elite shows especially on varied trails his skills. This makes it ideal for versatile trail riding and also offers a solid price-performance ratio.

E-Bike Types:	E-Mountainbike (e-MTB), Fully e-MTB
Model year:	2023
Battery capacity:	700 Wh - 799 Wh
Drive system:	Bosch drive
Manufacturer:	KTM
Frame type:	Mens
Derailleur/drive type:	Derailleur - chain drive
Bosch System:	Bosch Performance Line CX from 2022 Smart System
Battery position:	Intube battery / frame integrated
Frame:	Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246
Fork:	RockShox 35 Silver TK 29" 160mm 15x110 taper
Battery:	Bosch PowerTube 750 Wh Smart System horizontal
Tyres:	front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622 \| rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584
Saddle:	Selle San Marco Ground Short Open Fit Narrow
Seat post:	KTM Comp dropper internal
Item:	KTM Macina Kapoho Elite 2024
Colour:	Space Galaxy matt (grey+black)
Model year:	2024
Stem:	KTM Team Trail35
Wheels:	front: KTM Line - Shimano MT410B CL 32H 110-15TA Ambrosio E30 Trail 32H 622x30TC DT Champion 2.0 black \| rear: KTM Line - Shimano MT410B CL 32H 148-12TA Ambrosio E35 Trail 32H 584x35TC DT Alpine II 2.34 black
Damper:	FOX Float X Performance 250x70
Spring travel:	160 mm
Grips:	Ergon GA20
Motor:	Bosch Performance CX Gen.4 Smart System - 85 Nm
Headset:	Acros AICR internal 1.1/8"-1.5" angle limit
Pedal:	MTB-Pedal flat VPE-527 Aluminum
Wheel size:	27.5"/ 29"
Handlebar:	KTM Team Trail35 rizer25 800mm
Permissible total weight:	145 kg
Crank:	KTM E-TRAIL ISIS 160mm Q16
Cassette:	Shimano Deore M6100-12 / 10-51
Rear derailleur:	Shimano Deore XT M8100-12 SGS shadow+
Chain:	Shimano M6100-12
Shift lever:	Shimano Deore M6100-12
Charger:	Bosch Smart System Standard Charger - 4A
Disc brakes:	Shimano RT64 CL 203 / EM600 CL 180
Control unit:	Bosch LED Remote
Brake:	Shimano M4100 / MT420 4-Piston
GPS:	No - Bosch ConnectModule Ready
