Prices incl. VAT plus shipping costs
- Item number: 8262-001
- Manufacturer Part Number: 1230100106 / 023350106
- EAN: 9008594472020

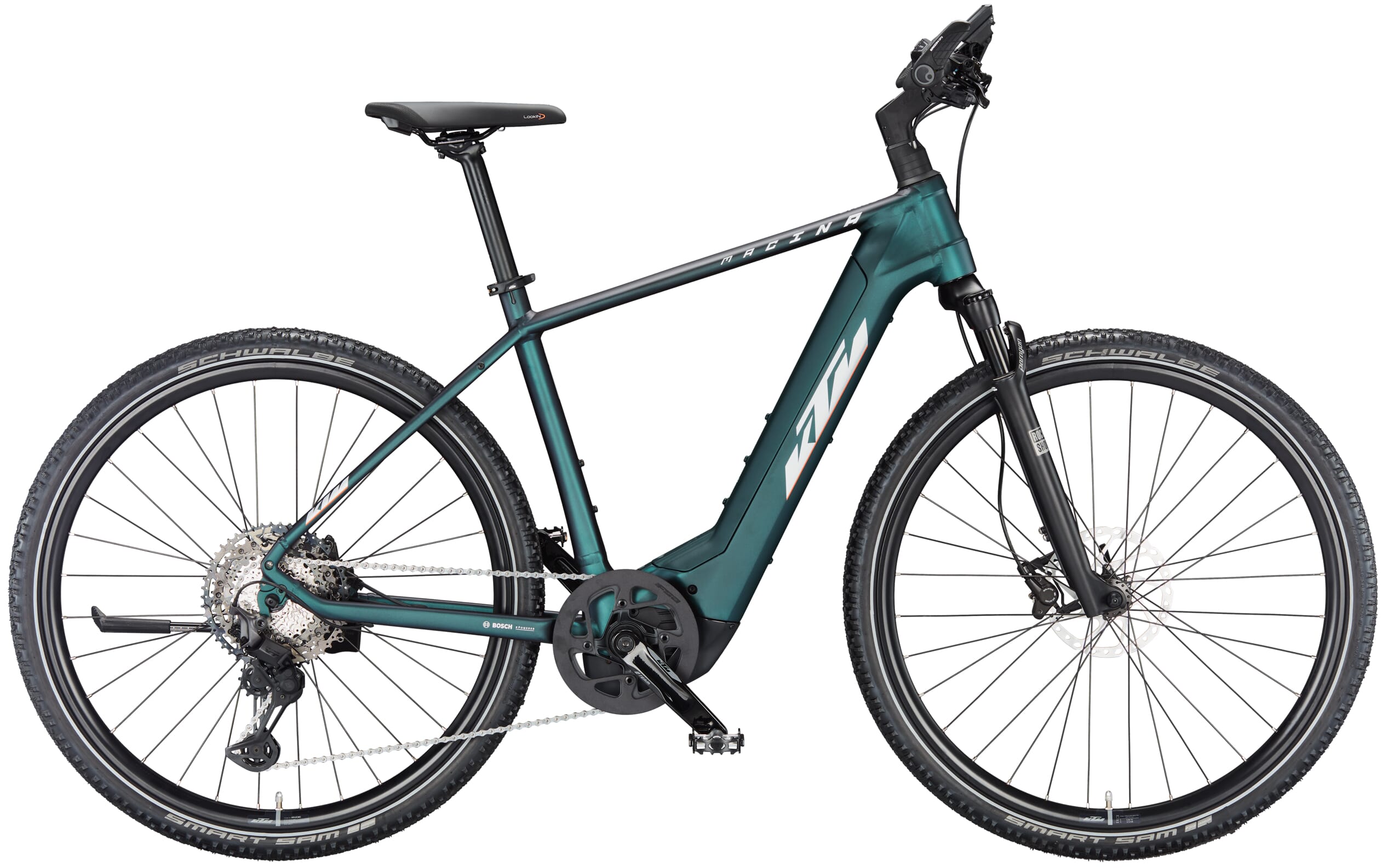

The Macina Cross 710 from KTM is a trekking bike that brings full off-road potential with it. Whether you're riding in the urban jungle or in the secluded countryside, you'll always be well on your way with this e-bike.
FEATURES OF THE KTM MACINA CROSS 710 - 2024:
- stable trekking offroad aluminum frame
- powerful Bosch Performance CX Smart System drive, 85 Nm
- Bosch Powertube battery with 750 lasts even the longest tours
- clear Kiox 300 display
- smooth RockShox Paragon Gold air suspension fork
- Shimano Deore XT M8130 11-speed gears with a wide range of ratios
- hydraulic Shimano brakes provide the necessary safety in every situation
- grippy Schwalbe Smart Sam tires are suitable for virtually any surface
Only the best of everything
The combination of the latest Bosch Smart System technology, a powerful 750 Wh battery and the Bosch Kiox 300 display ensure long-lasting riding fun. The installed high-end components guarantee optimal shifting and braking performance and provide the extra safety. The Schwalbe Smart Sam tires, with their distinctive off-road tread and compact center bridge provide pleasant, low-vibration rolling behavior and particularly long durability.
Ebike24 recommends: The KTM Macina Cross 710 convinces with high-quality components that are reliable and allow use on virtually any terrain. A reliable partner for everyday use and beyond.
E-Bike Types: | Cross e-Bikes, Trekking e-Bikes |
Model year: | 2023 |
Battery capacity: | 700 Wh - 799 Wh |
Drive system: | Bosch drive |
Manufacturer: | KTM |
Frame type: | Ladies / Trapeze, Mens |
Derailleur/drive type: | Derailleur - chain drive |
Bosch System: | Bosch Performance Line CX from 2022 Smart System |
Battery position: | Intube battery / frame integrated |
Frame: | Macina Trekking Offroad Aluminum 6061 PT750Wh Bosch Gen.4 / T-2930 |
Fork: | RockShox Paragon Gold RL Air 65mm taper |
Battery: | Bosch PowerTube 750 Wh Smart System horizontal |
Tyres: | Schwalbe Smart Sam Perf. 47-622 |
Saddle: | Selle Royal Lookin Athletic |
Seat post: | KTM Team 30.9/350 |
Item: | KTM Macina Cross 710 2024 |
Colour: | Green Purple Flip matt (silver+orange) |
Model year: | 2024 |
Stem: | KTM Line 20° internal |
Display: | Bosch Kiox 300 |
Side stand: | KTM 28" adjustable |
Wheels: | front: KTM Line - Shimano Deore M6000 CL 32H 100-5QR Ryde Rival Sport 32H 622x25C DT Champion 2.0 black | rear: KTM Line - Shimano UR600 CL 32H 135-5QR Ryde Rival Sport 32H 622x25C DT Alpine II 2.34 black |
Spring travel: | 65 mm |
Grips: | Ergon GP30 SD with Barend |
Motor: | Bosch Performance CX Gen.4 Smart System - 85 Nm |
Headset: | Acros AICR internal 1.1/8"-1.5" angle limit |
Pedal: | MTB-Pedal VP-195E Aluminum |
Wheel size: | 28" |
Handlebar: | KTM Team low rizer 640mm |
Permissible total weight: | 120 kg |
Crank: | KTM E-TEAM ISIS 170mm Q16 |
Cassette: | Shimano LG400-11 / 11-50 |
Rear derailleur: | Shimano Deore XT M8130-11 LG shadow+ |
Chain: | KMC e11 Sport EPT e-bike |
Shift lever: | Shimano Deore XT M8130-11 LG |
Charger: | Bosch Smart System Standard Charger - 4A |
Disc brakes: | Shimano RT64 CL 180 / EM600 CL 160 |
Control unit: | Bosch LED Remote |
Brake: | Shimano MT402 (3-F) / MT420 4-Piston |
GPS: | No - Bosch ConnectModule Ready |
