Prices incl. VAT plus shipping costs
- Item number: 8571-003
- Manufacturer Part Number: 2303304107

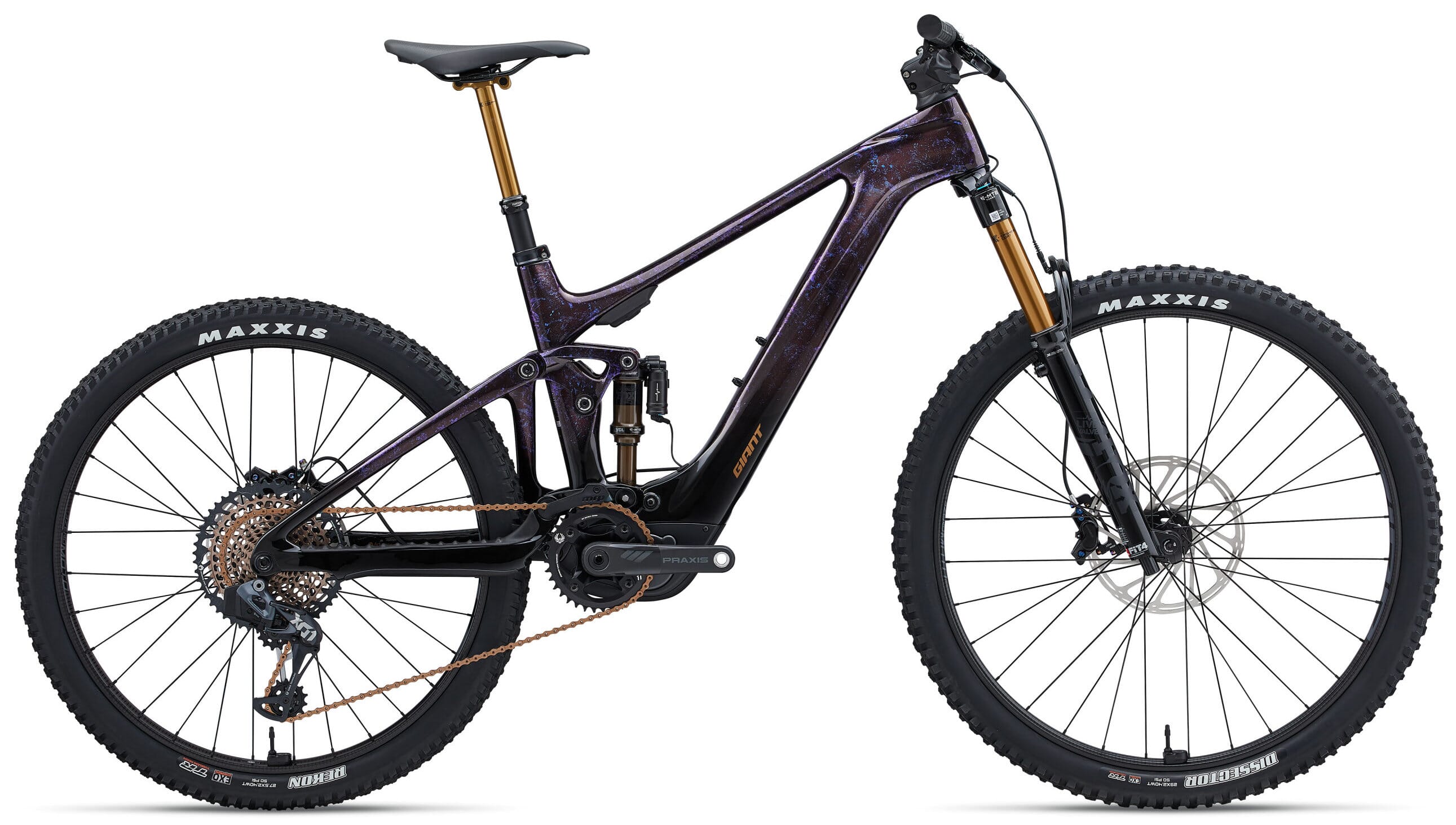

Experience e-mountain biking in its new lightness - with the Giant Trance X Advanced E+ Elite 1. The Light E-MTB from Giant impresses with its outstanding features, unique handling and numerous personalisation options. The basis of this trail machine is the extremely stable carbon frame with integrated flip chip. Use it to adjust the geometry of your Trance X Advanced E+ exactly to your needs. The suspension is also individually adjusted - fully automatically and always in line with the current riding situation. This is ensured by the electronic eLiveValve suspension system from Fox. The Trance X Advanced El is completed by the optimised Giant SyncDrive Pro2 motor with 85 Nm.
Features of the Giant Trance X Advanced E+ Elite 1 2023
- Carbon Light E-MTB

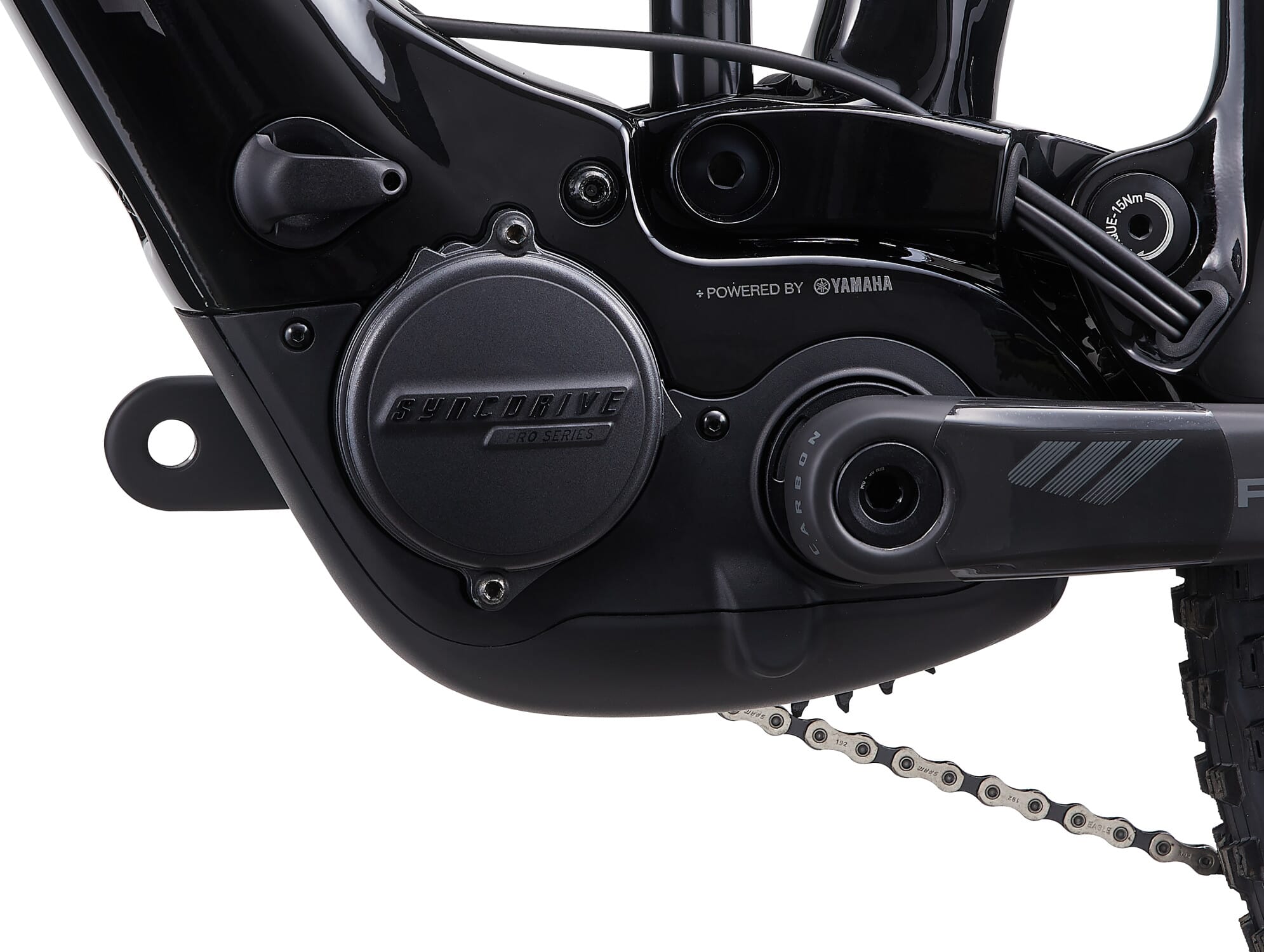

- Giant SyncDrive Pro 2 motor - 85 Nm
- 400 Wh EnergyPak Intube battery - Range Extender compatible
- electronic Fox eLiveValve suspension system
- SRAM GX Eagle AXS 12-speed rear derailleur
- SRAM Code R 4-piston brakes
eBike24 recommends: If you are looking for a lightweight e-mountain bike with absolute top equipment, you will find it in the Giant Trance X Advanced E+ EL 1.
Note: For even longer riding pleasure, the Giant Trance X Advanced E+ EL 1 comes with a throttled motor setup. However, you can easily adjust the performance settings individually via the RideControl app and tickle out the maximum of your drive if you wish - or we can do this for you during assembly.
E-Bike Types: | E-Mountainbike (e-MTB), Fully e-MTB, Light E-MTB |
Battery capacity: | 400 Wh - 499 Wh, Dual Battery compatible |
Drive system: | Giant drive |
Manufacturer: | Giant |
Frame type: | Mens |
Derailleur/drive type: | Derailleur - chain drive |
Battery option: | Dual Battery compatible |
Battery position: | Intube battery / frame integrated |
Frame: | Carbon main frame & rear triangle, Maestro rear triangle with geometry flip-chip, carbon rocker, integrated speed sensor, EnergyPak Plus (WB Style) compatible, 140 mm travel, 12 × 148 mm, SRAM UDH derailleur hanger |
Fork: | Fox 36 Performance Elite Live Valve, GRIP2 damping, 150 mm travel, Boost 15 × 110 mm |
Battery: | EnergyPak Smart Micro 400 Wh | EnergyPak Plus Range Extender compatible (WB style) |
Tyres: | Maxxis Minion DHF 29 × 2.50" folding, tubeless, EXO | Maxxis Dissector 27.5 × 2.4" folding, tubeless, EXO delivery with tube |
Saddle: | GIANT Romero |
Seat post: | TranzX Vario seat post 30,9 mm (S: 120-150 mm), M:140-170 mm, L / XL:170-200 mm) |
Extras: | Tubeless kit (fluid, valves, tyre levers, valve core remover, instructions) |
Item: | Giant Trance X Advanced E+ Elite 1 - 2023 |
Colour: | Gunmetal Black |
Model year: | 2023 |
Stem: | GIANT Contact SLR Carbon handlebar stem unit, 40 / 45 / 50 mm reach adjustment |
Display: | without - SmartGateway (SG) display compatible, ANT+ display compatible |
Damper: | Fox Float X Performance Elite Live Valve, 185 × 52,5 mm, Trunnion mount, custom tuned |
Spring travel: | front: 150 mm | rear: 140 mm |
Grips: | GIANT Tactal Pro single lock-on |
Motor: | SyncDrive Pro2, 85 Nm |
Front hub: | GIANT e-TRX 2 |
Rear hub: | GIANT e-TRX 2 |
Wheel size: | 29" / 27.5" |
Handlebar: | GIANT Contact SLR carbon handlebar stem unit, 40 / 45 / 50 mm reach adjustment, 800 mm |
Crank: | Praxis Performance Carbon, SRAM X-SYNC Eagle 36T chainring |
Cassette: | SRAM XG-1275, 10-52T |
Rear derailleur: | SRAM GX Eagle AXS, 12-speed |
Chain: | SRAM GX Eagle PowerLock |
Shift lever: | SRAM AXS Rocker Paddle |
Charger: | EnergyPak Smart Charger Compact, 4A |
Brake lever: | SRAM Code R |
Spokes: | GIANT e-TRX 2 |
Disc brakes: | 220 / 200 mm |
Control unit: | RideControl GO + RideControl Ergo 3 |
Brake: | SRAM Code R (4-piston) |
