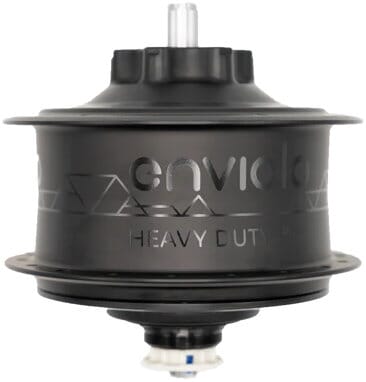

Enviolo HD Heavy Duty gear hub CY2024

Enviolo HD Heavy Duty gear hub CY2024
390.00€

Prices incl. VAT plus shipping costs

  • Item number: 10324-001
  • Manufacturer Part Number: CVP-HD-SA-32-DC-OE-1

Type of axle:

Number of spikes:

Description Reviews 0
Close menu

The Enviolo HD Heavy Duty gear hub is the packhorse among the stepless gear hubs! With this robust hub, you can effortlessly transport up to 250 kg of cargo . This makes the Heavy Duty gear hub ideal for transporting heavy loads. Despite the enormous load capacity, you can switch continuously between the different gear ratios and always find the right cadence for every situation.

Features of the Enviolo Heavy Duty gear hub

  • Stepless gear hub
  • Suitable for heavy-duty transport
  • Ideal for cargo eBikes
  • 135 mm M10 solid axle or 148 mm modular axle
  • Extremely robust, powerful & durable
  • Load capacity:
    100 Nm motor torque at 160 kg permissible total weight
    max. 90 Nm motor torque at 200 kg total weight
    max. 85 Nm motor torque at 250 kg total weight
  • 40T spline hub interface
  • Compatible with AUTOMATiQ interface
Specifications
Manufacturer: Enviolo
Scope of delivery: 1x Enviolo Heavy Duty gear hub CY2024
Colour: black
Transmission: 380% (0.5 - 1.9)
Permissible total weight: 250 kg
number of spokes: 32 | 36
Axle standard:
Close menu
Write a review
Reviews will be activated after verification.

The fields marked with * are required.

Customers also bought Customers also viewed
Customers also bought
Customers also viewed

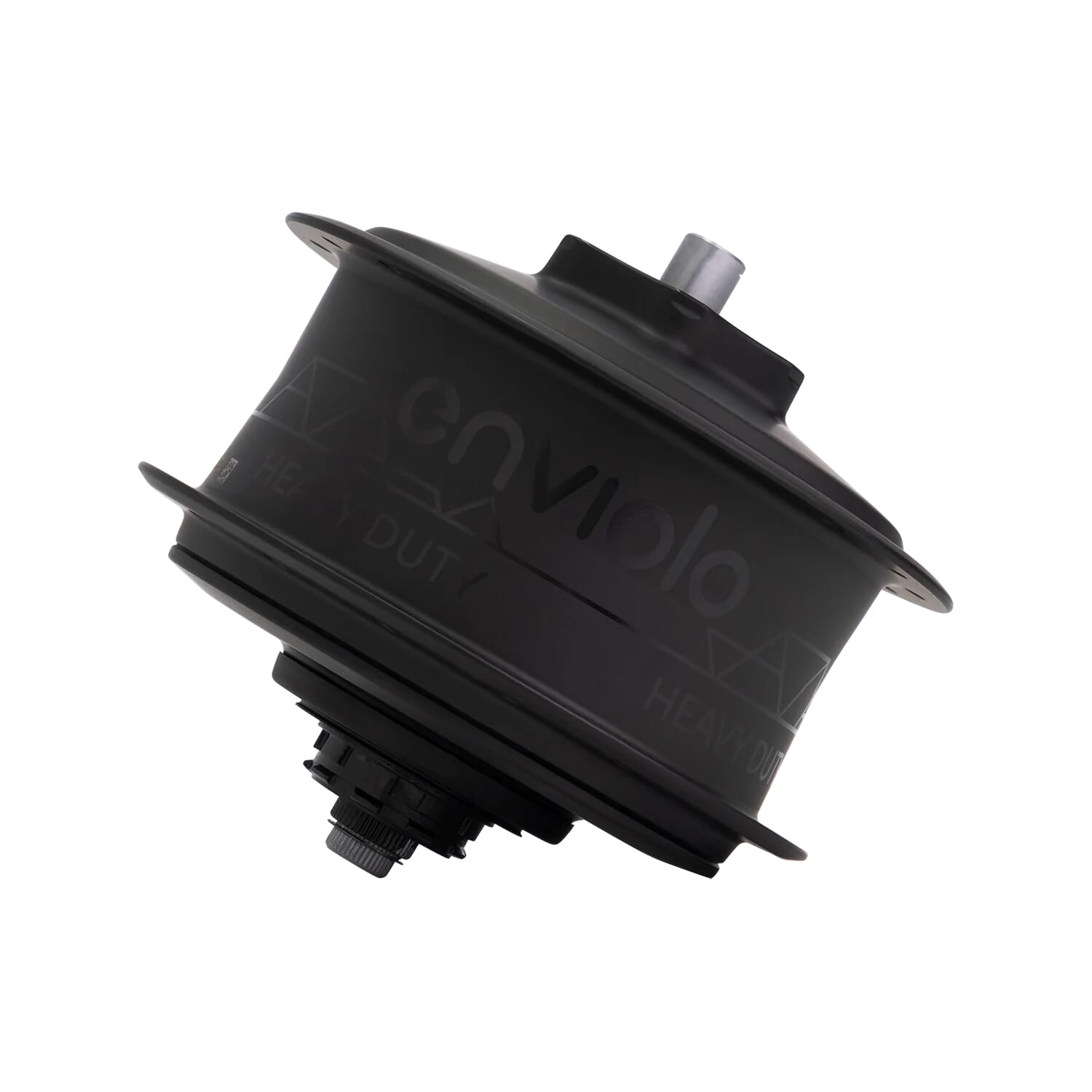

Enviolo Heavy Duty Gear Hub - 135mm Bolt Axle
Enviolo Heavy Duty gear hub
359.90€
Enviolo Trekking gear hub CY2024
Enviolo TR Trekking hub CY2024
320.00€
Enviolo mounting kit for gear hubs with a fixed screw axle
Enviolo hub mounting set for gear hubs with a fixed screw axle
8.90€
Enviolo retrofit kit manual shift interface to AUTOMATiQ Bosch e-bike system 2 - PowerTube battery
Enviolo retrofit kit manual shift interface to AUTOMATiQ
409.90€

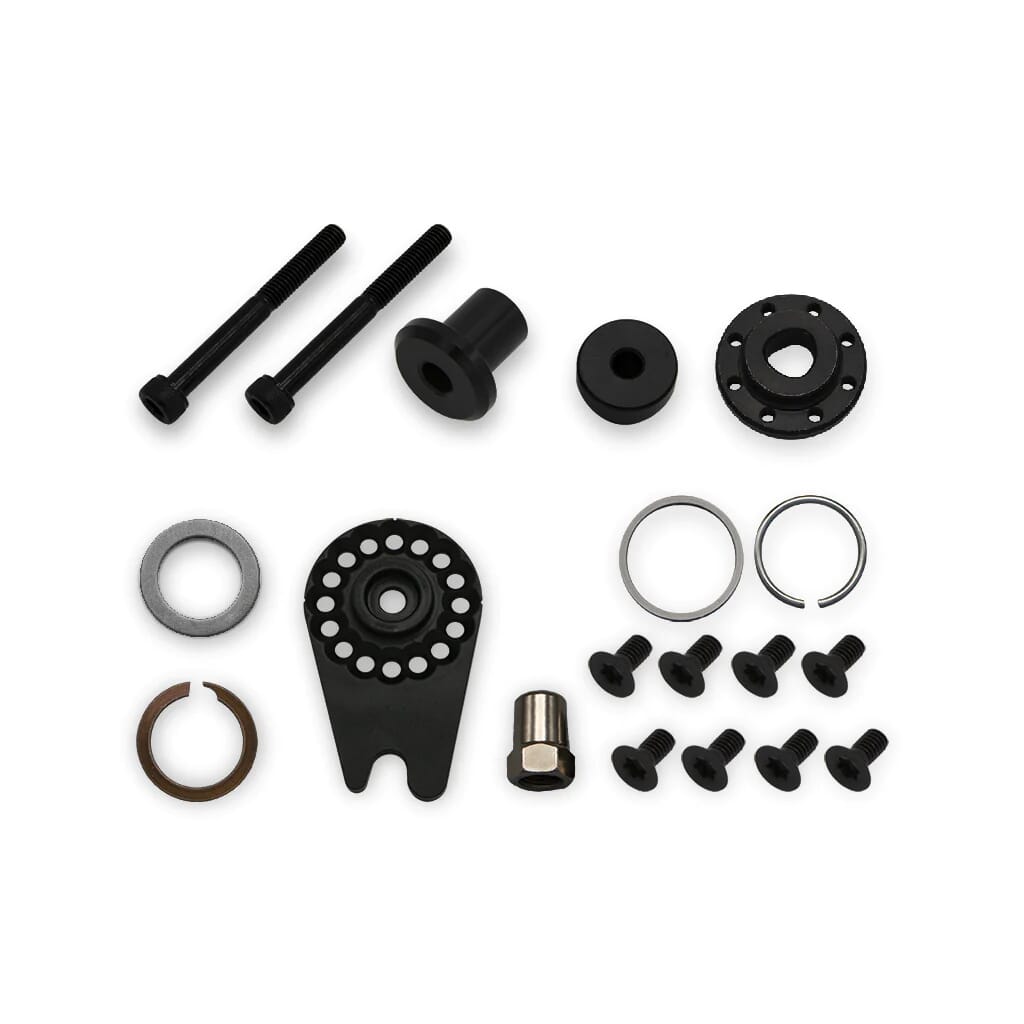

Enviolo mounting set for modular Cargo/ Sportive hubs on thru axle - 142mm
