Bosch secondary locking mechanism for CompactTube 400 battery

Preview: Bosch secondary locking mechanism CompactTube 400 - pivot

Preview: Bosch secondary locking mechanism CompactTube 400 - axial

Bosch secondary locking mechanism CompactTube 400 - pivot

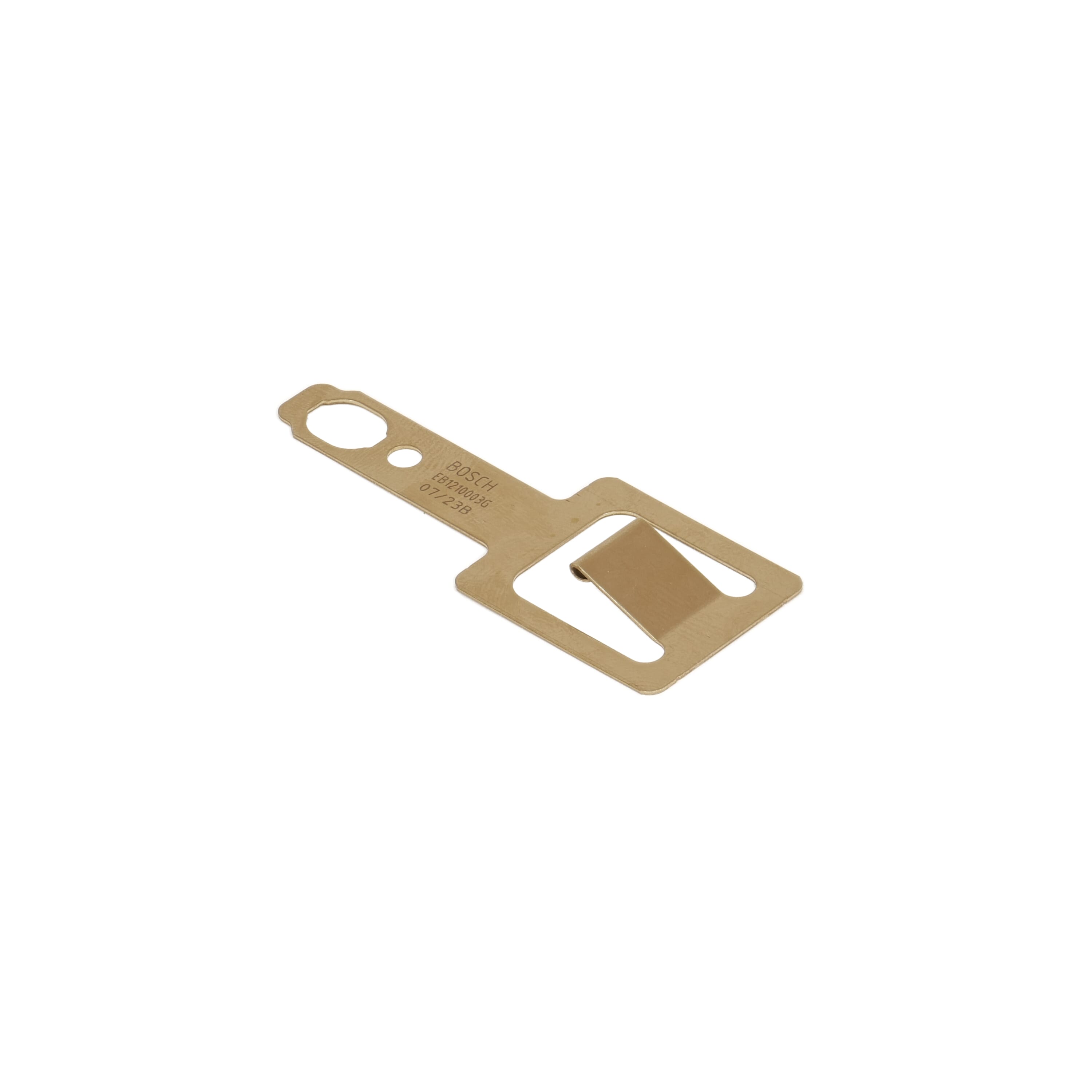

Bosch secondary locking mechanism CompactTube 400 - axial

2.00€

Item number: 9448-001
Manufacturer Part Number: EB1210003F
EAN: 4054289010324

The secondary locking mechanism for CompactTube 400 batteries protects your eBike battery from slipping out. There are two different locking mechanisms: pivot and axial. With the "pivot" version, the battery is inserted into an open down tube. With the "axial" version of the lock, on the other hand, the CompactTube is inserted into a closed down tube. Depending on how the battery is installed on your eBike, you will need a different locking mechanism.

Features of the Bosch CompactTube secondary locking mechanism

Original spare part from Bosch
For eBikes with Bosch CompactTube 400 Wh battery
Additional securing of the battery
Axial & pivot version

Specifications

Drive system:	Bosch drive
Manufacturer:	Bosch
Bosch System:	Bosch Performance Line SX from 2024 Smart System
Battery position:	Intube battery / frame integrated
Item:	Bosch secondary locking mechanism CompactTube 400
Scope of delivery:	1x Bosch secondary locking mechanism CompactTube 400
Colour:	metallic, silver
Maker's ref. no.:	pivot: EB1210003F \| axial: EB1210003G
EAN:	pivot: 4054289010324 \| axial: 4054289010317
Bosch E-Bike System:	Bosch Smart System
